Rotary Vacuum Pumps

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rotary Vacuum Pumps Specification

Temperature Resistance
Up to 120C

Display Type
Analog

Speed Range
1400 rpm

Features
Compact design, High vacuum efficiency, Low noise operation, Robust construction, Easy maintenance

Power Supply
Single Phase AC

Control Type
Manual

Accuracy
2%

Shape
Rectangular

Type
Rotary Vacuum Pump

Dimension (L*W*H)
430 mm x 245 mm x 285 mm

Equipment Type
Vacuum Pump

Equipment Materials
Stainless Steel, Cast Iron

Power
0.5 HP

Voltage
220-240 V

Material
Stainless Steel

Application
Laboratory, Industrial, Chemical processing, Pharmaceutical

Capacity (Ltr)
50 L/min

Rotary Vacuum Pumps Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Rotary Vacuum Pumps

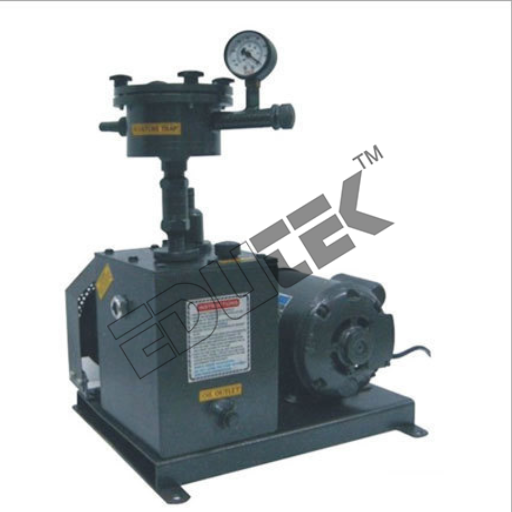

Rotary Vacuum Pumps ETL-114

Rotary Vacuum Pumps is mounted on heavy steel base, oil sealed, heavy duty electric motor, v-belt driven at speed up to 400RPM, components high grade cast iron are the main features. Supplied in single or double stage models creating maximum vacuum of 0.01 mm of Hg column or 0.001 mm of Hg. Column respectively. It works on 220V AC 50Hz single phase. Provided with belt guard, non return valve and vacuum gauge.

Specifications:

Capacity	Motor
25 lit./mt.	0.25 hp
45 lit./mt.	0.25 hp
75 lit./mt.	0.25 hp
100 lit./mt.	0.50 hp
150 lit./mt.	0.50 hp
200 lit./mt.	1.00 hp

Optional:-

Air blast
Moisture trap
High vacuum oil

Note : Ask for oil free vacuum pumps.

High-Efficiency Vacuum Generation

Engineered for precision, the rotary vacuum pump achieves an ultimate vacuum of 0.05 mm Hg. Its single-stage, oil-sealed design ensures consistent and efficient performance, making it ideal for laboratories and industrial setups. The air-cooled mechanism enhances reliability and prevents overheating during continuous use.

Designed for Versatility and Durability

Constructed from stainless steel and cast iron, this pump withstands demanding environments, including chemical processing and pharmaceutical uses. The compact, rectangular shape allows for easy installation in varied spaces, while robust build quality enhances its lifespan and reduces maintenance needs.

Quiet, Compact, and User-Friendly Operation

Operating at noise levels below 65 dB and powered by a 0.5 HP motor at 1400 rpm, this pump provides a quiet workspace. Manual controls and an analog display offer straightforward operation, while air cooling and oil-sealed lubrication ensure seamless and trouble-free functionality.

FAQs of Rotary Vacuum Pumps:

Q: How does the rotary vacuum pump achieve high vacuum efficiency?

A: The rotary vacuum pump utilizes a single-stage, oil-sealed mechanism that efficiently removes air from the system, reaching an ultimate vacuum of 0.05 mm Hg. This design ensures reliable performance in applications that demand precise vacuum control.

Q: What applications are suitable for this rotary vacuum pump?

A: This vacuum pump is ideal for laboratory, industrial, chemical processing, and pharmaceutical environments, offering robust performance and durability for a wide range of vacuum-related tasks.

Q: When should the oil in the pump be replaced or maintained?

A: Oil should be checked and replaced periodically, following manufacturer recommendations or when contamination reduces pump efficiency. Regular oil maintenance is vital for prolonging pump life and maintaining vacuum performance.

Q: Where can this pump be installed for optimal operation?

A: The compact and sturdy design allows for installation in laboratories, industrial workspaces, or any area requiring efficient vacuum generation. Adequate ventilation should be ensured for optimal cooling and performance.

Q: What is the process for starting and operating the pump?

A: Start by ensuring sufficient oil is in the reservoir and connect the pump to a compatible single-phase AC power supply. Use the manual control to activate the pump and monitor performance via the analog display. Adhere to usage instructions for best results.

Q: How does the pumps air-cooled system benefit its operation?

A: The air-cooled system prevents overheating, thereby enhancing pump reliability during extended operation. This feature improves product lifespan and reduces downtime in demanding environments.

Q: What are the main benefits of using this rotary vacuum pump?

A: Key benefits include high vacuum efficiency, low noise levels, robust stainless steel and cast iron construction, compact design, and easy maintenance. These features contribute to reliable, long-term service in diverse professional settings.
