Specification:

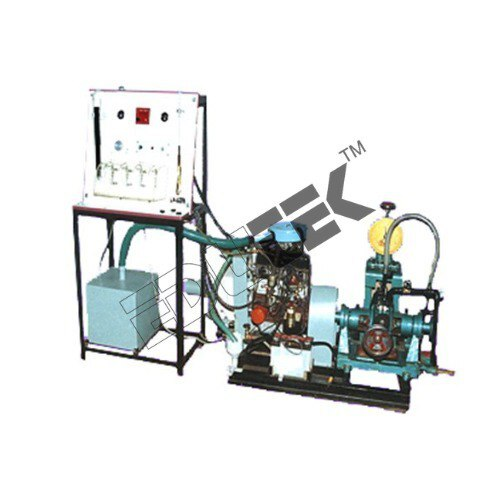

3 OR 4 CYLINDER FOUR STROKE PETROL ENGINE TEST RIG WITH ROPEBRAKE/COMPUTERIZED 3 OR 4 CYLINDER FOUR STROKE PETROL ENGINE TEST RIG.
Engine Automotive petrol engine.Four stroke four cylinder, water cooled, developing 20 BHP at 3000 RPM,provided with battery and self-starter.
Rope Brake Dynamometer. OR suitablecapacity hydraulic dynamometer also we can provide with electrical dynamometer.
Measurements provided
Fuel intake measurement.
Air intake measurement.
Water circulated through enginejacket.
Water circulated exhaust gascalorimeter.
Digital Temperature Indicator forExhaust gas & water temperature
Tachometer
Gauges for oil pressure & batterycondition.
Arrangement to cut off the ignitionto conduct morse test the test rig enables to determine I.H.P.
B.H.P., specific fuel consumption,Air fuel ratio volumetric efficiency and heat balance sheet at different loadsand speeds.
A technical manual accompanies theunit.
