Specification:
ADIABATIC BATCH REACTOR APPARATUS
An adiabatic batch reactor is aclosed system with no input and output streams. This reactor is operated underconditions like adiabatic (Temperature of Reaction Mass keep on changing),perfectly mixed (composition of the reaction mixture is uniform throughout),and constant volume (volume of the reaction mixture within the reactor remainsconstant, there is no appreciable change in the density of reaction mass).
This setup is used to study acatalytic homogeneous reaction under adiabatic conditions.

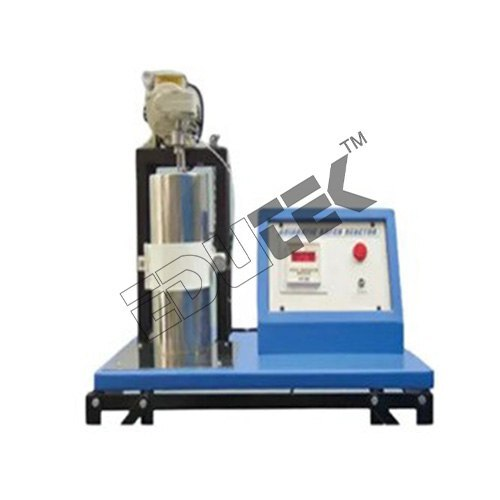

The set-up consists of a Dewar flaskof a capacity of 1 lit. Fitted with a stirrer. The flask is double insulated byceramic wool insulation. Temp., is measured by a digital temp indicator. Thewhole setup is mounted on a rigid M.S. frame.
Experimentation/Learning Objectives
To study the decomposition ofHydrogen Peroxide with water in presence of an Iodide catalyst.
To predict the degree of conversionfrom time-temperature data
Utilities Required
Hz, 5-15 Amp combined socket withearth connection. Earth voltage should be less than 5 volts.
Floor Area Required: 1.0 m x 1.0 m.
Instruments, Laboratory Glassware,and Chemicals required for analysis as per the system adopted.
Product Specification
Material: Stainless Steel
Capacity: 1 litre
Country of Origin: Made in India
Temp. Indicator: Digital
Floor Area Required: 1.0 m x 1.0 m
