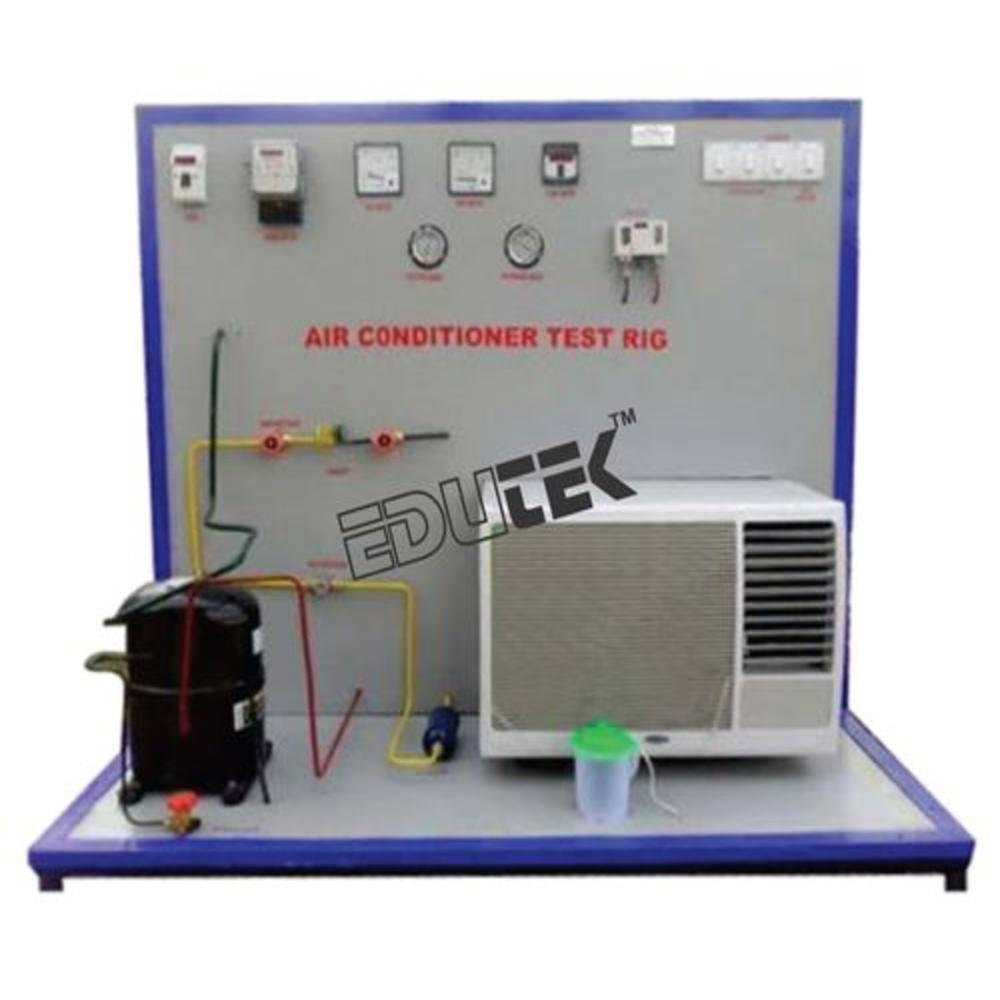

AIR CONDITIONING MODEL
Air conditioning technology. In combination with the base unit the operational model of a full air conditioning system is created. The model is plugged onto the base unit, secured using fasteners and connected with refrigerant hoses to become a
complete refrigeration circuit for the air cooler.
The room climate is created by the interaction of air temperature, heating temperature and air humidity. The purpose of room air conditioning is to shape the room climate in accordance with the requirements of people or sensitive goods.
This model introduces the operation of an air conditioning system and the recirculating air and outer air operating modes. The model includes two air ducts with transparent front. The top air duct serves as climatic chamber whilst the bottom air duct contains the air cooler,
The individual system components are operated via the software. Temperature and humidity before and after the evaporator and in the climatic chamber are recorded by sensors, digitised and represented dynamically in the software. The conditioning of the air can be monitored online in the h-x diagram.
Fundamentals and individual components are represented in the educational software for Performance assessments check the learning progress. With the aid of the authoring system further exercises and performance assessments can
be created.
The unit shall perform the following experiments and investigations:
Learning Objectives / Experiments
- Full air conditioning system and its main
- Components
- Heating and cooling in the h-x diagram
- Humidifying and dehumidifying in the h-x diagram
- Outer air and recirculating operation
- Fault simulation
Specification
- Model of an air conditioning system to plug onto the base unit HIS Training System
- Training system with HSI technology
- Air duct with transparent front and adjustable ventilation flap for recirculating or outer air operation
- Evaporator as air cooler
- 2 heaters as air preheater and reheater
- Air humidifier with float switch, fan, filling level indication
- Thermostatic expansion valve as expansion element
- Sensor to record temperature and combined sensor for humidity and temperature
- Operation of individual components and of the system and fault simulation via software
- Software: educational software, data acquisition, system operation
- Software for data acquisition via USB under Windows Vista or Windows 7
Technical Data
- Air duct, top: 136x136x800mm
- Evaporator as air cooler
- Transfer area: approx. 900cm²
- Air heater: 2x 250W
- Axial fan
- Max. power consumption: 20W
- Max. flow rate: 160m³/h
- Humidifier
- Heater: 200W
- Servomotor for ventilation flap: 24VDC
Measuring ranges
- Temperature: 2x -50...50°C, 5x 0...50°C
- Humidity: 4x 10...100% r.h.
Dimensions and Weight
- LxWxH: 850x400x680mm
- Weight: approx. 51kg
