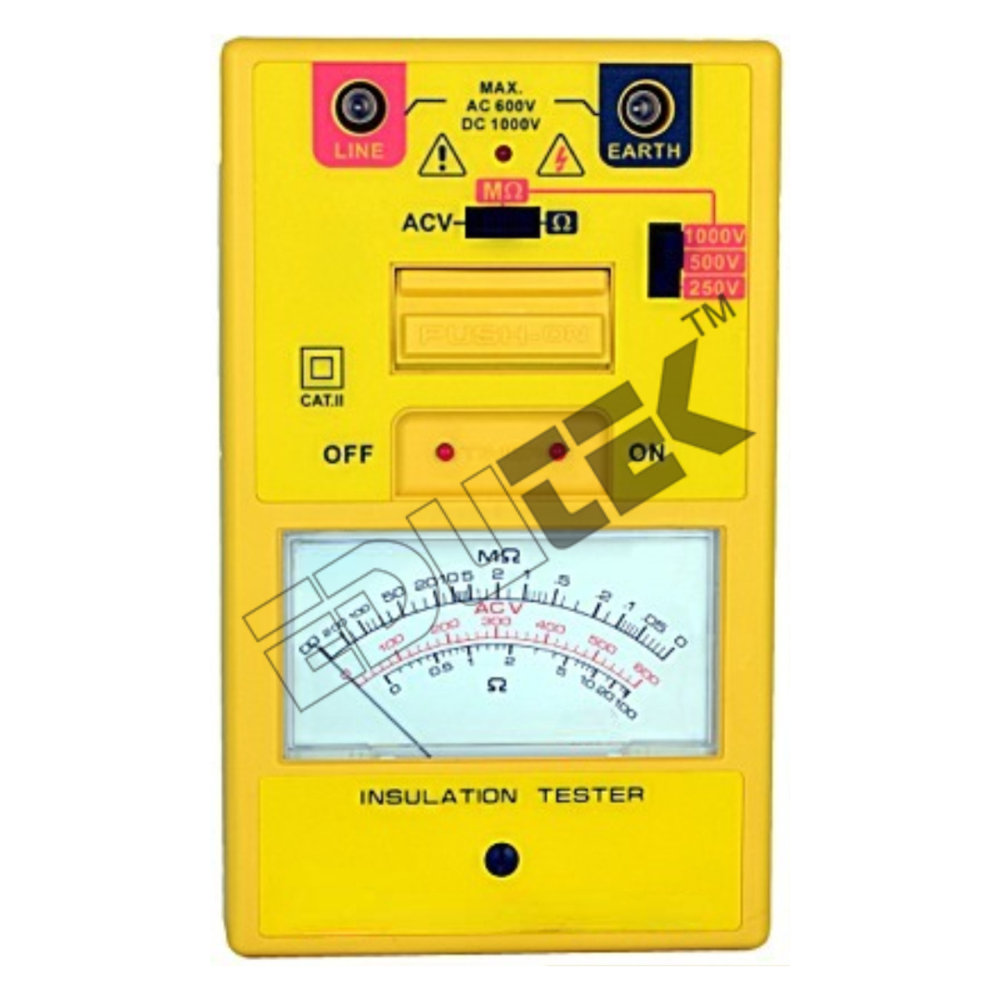

ANALOG INSULATION TESTER

Get a Price/Quote

Product Details:

Temperature Range 0 - 40C
Model No MID
Power Source Battery operated
Automation Grade Manual
Core Components Analog display testing probes
Voltage 1000V max
Measurement Range 0 - 1000 mega ohms
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

ANALOG INSULATION TESTER Product Specifications

Usage Electrical insulation testing
Equipment Materials Durable plastic body
Temperature Range 0 - 40C
Weight Approximately 500g
Automation Grade Manual
Power Source Battery operated
Model No MID
Core Components Analog display testing probes
Type Insulation tester
Display Type Analog
Dimension (L*W*H) Compact dimensions approximately 15x8x4 cm
Measurement Range 0 - 1000 mega ohms
Voltage 1000V max
Feature Portable high precision
Warranty 1 year
Accuracy High accuracy for insulation testing

Product Description

ANALOG INSULATION TESTER

Edutek Instrumentation are the Best Manufacturer and Exporter Company in India

Insulation Resistance:

Test voltage: 250V/500V/1000V
Output Voltage open circuit: +10%
Measure ranges: 0-100M/0-200M/0-400M
Accuracy: 5%rdg

Accessories:

Test leads.
Instruction manual.
Batteries.
Heavy duty case.

FAQs of ANALOG INSULATION TESTER:

Q: What is the maximum voltage this insulation tester can handle?

A: The Analog Insulation Tester can handle a maximum voltage of 1000V.

Q: Is the Analog Insulation Tester portable?

A: Yes, the Analog Insulation Tester is portable with compact dimensions of approximately 15x8x4 cm and a weight of approximately 500g.

Q: What is the warranty period for the Analog Insulation Tester?

A: The Analog Insulation Tester comes with a 1-year warranty.

Q: What is the core component used for testing in the Analog Insulation Tester?

A: The Analog Insulation Tester uses analog display testing probes for accurate insulation testing.

Q: What is the measurement range for insulation testing with this tester?

A: The measurement range for insulation testing with the Analog Insulation Tester is 0 - 1000 mega ohms.
