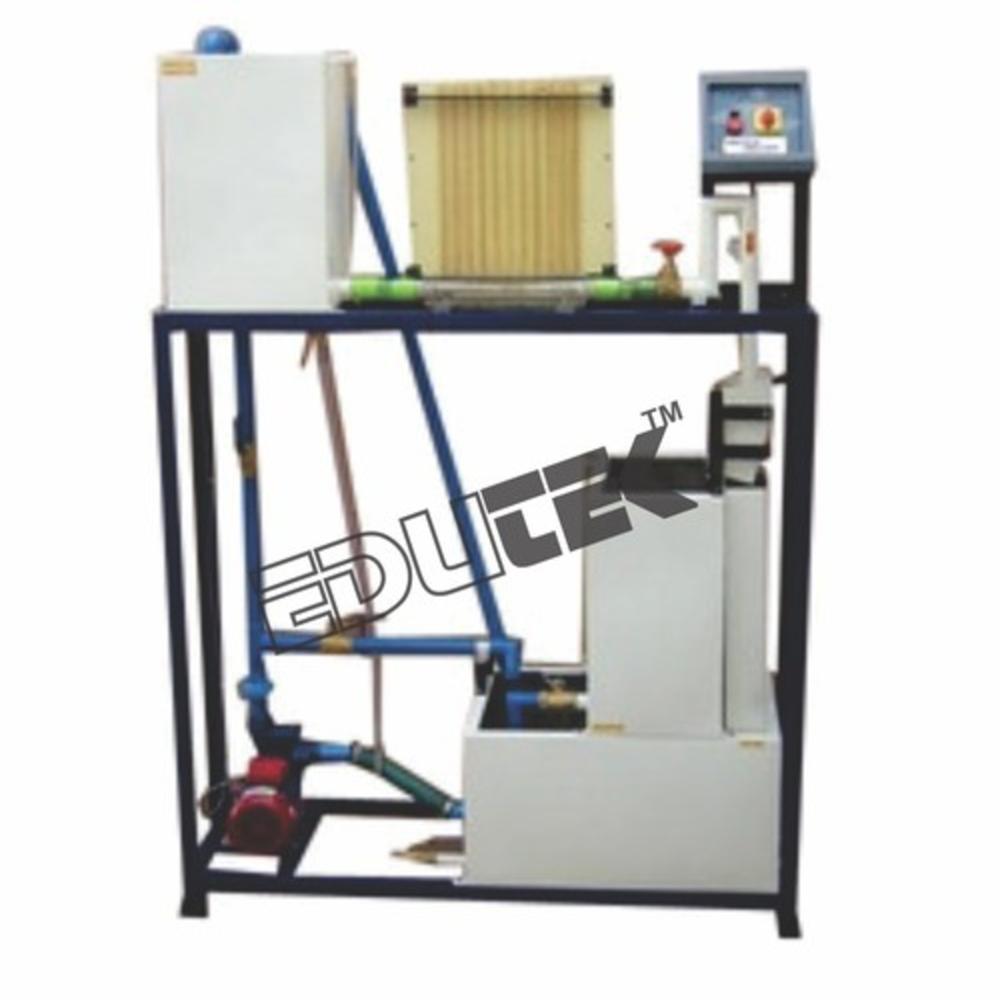

KIT TO STUDY THE BERNOULLI'S THEOREM AND IMPLICATIONS

Lightweight support frame in anodized aluminum, square shape 19X19X2 mm, which fixes a floor of PVC ivory coluore dimensions: mm 850 x 400 x 125h
A series of 11 piezometric tubes (outer diameter 8 mm, thickness 2 mm and height 470 mm) mounted on a vertical platform integral with the main frame piezometric tubes must be pressurized to increase the range of flow

Gauge:

AISI 304 stainless steel box.
Contact sides: brass / copper alloy.
Nominal diameter: 63 mm.
Measuring range: 0 to 1.6 bar.
Accuracy class: 1.
Inlet tank connected to the supply pump located on the Hydraulics Bench in transparent plexiglass outer diameter 100 mm, thickness 5 mm, height 625 mm equipped with vertical scale to measure the water free level with respect to the axis of the Bernoulli channel the tank should be connected to the pump with a flexible tube.
Outlet tank connected to a discharge valve made of plexiglass transparent outer diameter 100 mm, thickness 5 mm and height 625 mm equipped with vertical scale to measure the water free level with respect to the axis of the Bernoulli channel the discharge valve shall allow an optimum degree of flow regulation.

Bernuolli channel:

Transparent plexiglass tube with convergent - divergent internal profile ( maximum diameter of 16mm and minimum diameter of 7 mm) provided with 11 probes to be connected to the piezometric tubes the tub shall be connected to the two tanks.
Ink injection system composed by a needle inserted into an appropriate housing in the feed cylinder feeding tank located at the upper end of the cylinder itself.
Venturi tube made of transparent plexiglas with three sections: a converging section length 50 mm, should have an inner diameter variable from 20 to 10 m a constant one length 100 mm,should have an inner diameter of 20 mm a divergent one lenght 100mm, a variable inner diameter from 10 to 20 mm.
Unit for the study of the head losses in pipes should be composed of three sections of pipes of different diameter and construction.
One with constant profile of 14 mm Int.
One with constant profile of 10 mm Int.
One with a sharp widening, or restriction of the section located in the middle; inner diameters 14 and 10 mm.
The test tubes shuldo be fitted with a pressure probes at each.
The tube of variable section shuld be provided with two additional pressure probes where the diameter changes.
