CAVITATIONS APPARATUS.

Product Description

Specification:

CAVITATIONSAPPARATUS

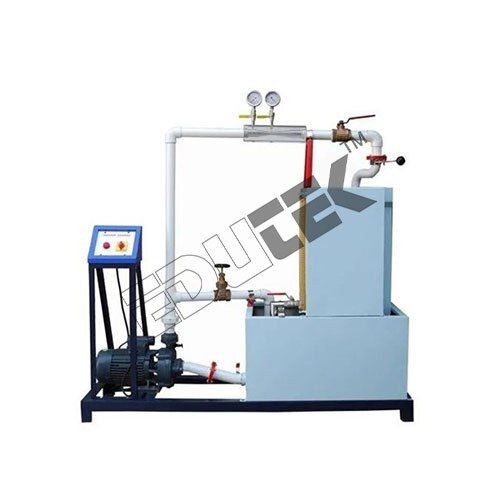

The apparatus has been designed todemonstrate the phenomenon of cavitation. The present set-up consists of a testsection made of Acrylic having conversion and diversion section. Pressuretapings at appropriate position are provided.

This test section is having onecontrol valve at upstream side to regulate the water flowrate. Two pressuregauges are connected to these taping which give the pressure readout at thetime of flow passing through this test section. Present set-up isself-contained water re-circulating unit, provided with a sump tank,centrifugal pump etc.

Water is pumped by means ofcentrifugal pump and passing through the test section, it returns back to thesump which make the system re-circulating type. Flow of water is divertedeither to measuring tank or sump tank with the means of a flow diverter, whenneeded. Flow control valve and by-pass valve are fitted in water line toconduct the experiment on different flow rates.

Flow rate of water is measured withthe help of measuring tank with piezometer and stopwatch. The supplied set-upis complete in all respect. Only water supply and electricity supply is to beprovided by the end user for running the set-up.

Product Specification

Test Section: Material Acrylic

Pressure Gauge: 0-4 kg/cm2

Vacuum Gauge: 0-760 mmHg

Water Circulation: By Pump, Crompton/Standard make.

Flow Measurement: Using Measuring Tank, Capacity 40liters

Sump Tank Capacity: 60 Ltrs.

Stop Watch: Electronic
