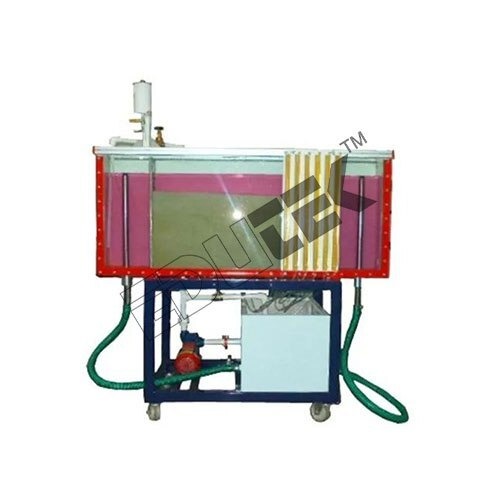

DRAINAGE & SEEPAGE TANK APPARATUS

Product Description

Specification:

DRAINAGE & SEEPAGE TANK APPARATUS

The present set-up is designed tostudy the flow through permeable media. This apparatus consists of a tank whosebed is made from Stainless Steel. The sides of the tanks are supported andsealed so that it allows free access to the interior.

One side of the tank is of Toughenedglass to give good scratch free visibility over a long period of use andminimum sight obstruction.

Second side is of Stainless Steel andrequired pressure tapings are mounted on the same.

The tank has two adjustable overflowsclose to the each end so that constant head of water can be maintained in eachhalf of the tank.

These may be lowered to a positionclose to the bed of the tank for some experiments to provide sub soil drainage.Present set-up is self-contained water circulating unit with sump tank, Pump,flow control valve etc.

Product Specification

Drainage or Seepage Tank: Length 1500 mm Width 100 mm

Tank Base: Stainless Steel or Aluminum

Front Side: Toughened Glass (Front Side)

Back Side: Stainless Steel

Sump Tank: Stainless Steel, Capacity 100 Ltrs.

Pump: FHP Pump, Crompton Make.
