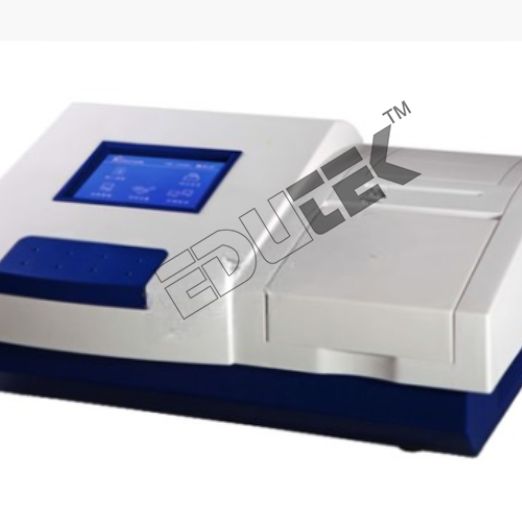

ELISA READER

Product Description

• Graphical operating interface, menu designed for convenient use.
• High brightness and large size LCD, with touch screen input.
• Flexible Plate layout with Blanks, Standards, Samples, Reference, QC in one screen
• Single or dual wavelength measurements, comprehensive qualitative and quantitative dataevaluation functions with cut-offs, curve-fits and transformation formulas.
• Proven optical system with 8 channel optical fiber scanning, auto plate centering system positions the center of the cell accurately
• Performing 12 different tests just in one plate
• Multi-forms in result output including patient comprehensive report
• Auto Lamp adjustment and auto calibration, improve the efficiency of the system and reduce the cost.
• Optional external mouse action and standard keyboard
• With serial RS-232 interface and parallel interface
• Photodetector: Silicon Photodiode
• Light source: Controlled tungsten halogen lamp
• Wavelength range: 400nm~800nm
• Indication range: 0.000~4.000OD
• Resolution: 0.001OD
• Accuracy: ±1.0% at 1.0 OD, 450um
• Reproducibility: ±1.0% at 1.0 OD, 450um
• Standard filters: 405,450,492,630nm
• Additional filters: on request, filter wheel for up to 8 filters
• Shaking: Linear Shaking , 3 speeds
• Display: 320 × 240 LCD
• Power supply: 100~240V, 50~60Hz
• 96 well plate reader at various wavelengths.
