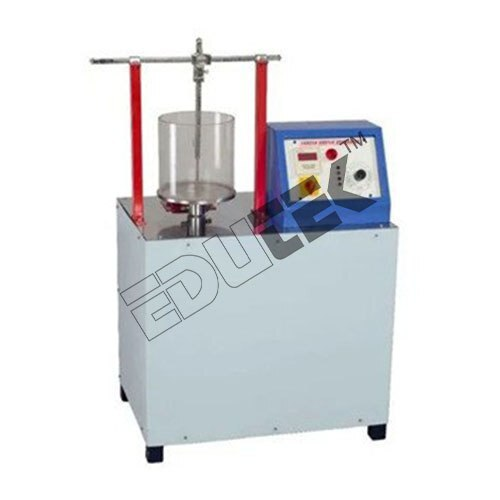

FORCED VORTEX APPARATUS

Product Description

Specification:

FORCED VORTEX APPARATUS

Edutek is counted among the listedmanufacturers, supply and exporters of premium quality forced vortex apparatus.The experimental set up consist of a circular transparent cylindrical tank inwhich four circumferential jets have been placed along the circumference of thecylinder near its bottom which helps in the formation of free vortex.

It is assumed that the torque exertedby these jets is negligible. The Orifice is reducing bush so that a reduceddiameter can be investigated. The plate can also be rotated with the help of avariable speed motor so that the cylinder rotates about its vertical Axis withthe help of a V belt and forced vortex is formed.

Conditions wear allowed to steadystate and the depth of flow at any particular point was observed not to changeover a period of time.

The experimental procedure involvesmeasurement of resulting free surface that represents the variation of the sumof the pressure and datum head.

Product Specification

Cylinder: Material acrylic Diameter: 200 mm. approx. Height: 300 mmapprox.

Motor: Variable speed DC motor of compatible

Probe: Made of stainless steel

Cross slide: With scale reading in cm
