Specification:

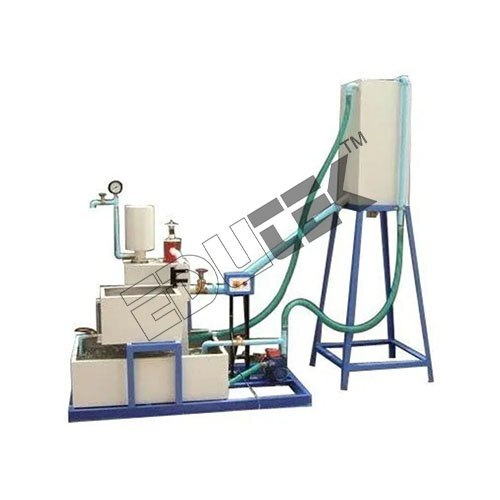

HYDRAULIC RAM DEMONSTRATION
The Hydraulic Ram comprises anacrylic base incorporating pulse and non-return valves and a supply reservoiron a stand, which is fed by the Hydraulics Bench.
An air vessel above the valve chambersmoothes cyclic fluctuations from the ram delivery the weights supplied may beapplied to the pulse valve to change the closing pressure and thus theoperating characteristics.
Demonstration Capabilities:-
Establishing flow/pressurecharacteristics and determining efficiency of the hydraulic ram.
Technical Specifications:-
Pump body manufactured from clearacrylic with stainless steel pulse and non-return valves.
Adjustable acrylic header tank withinlet and outlet hoses.
Outlet hose with variable headarrangement.
Quick-release fitting for easyconnection to Hydraulics Bench.
Supplied with weights to load pulsevalve.
Educational software available as anoption.
Supply head: 300-700 mm variable.
Delivery head: 750-1500 mm variable.
