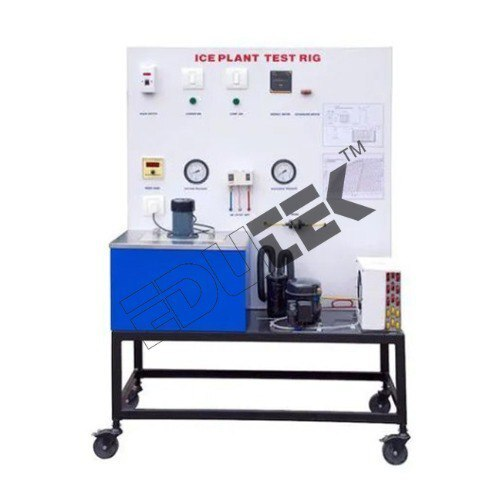

ICE PLANT TEST RIG

Product Description

Specification:

ICE PLANT TEST RIG

Description

The unit enables the students tostudy the Basic Principals of ice plant cycle within a short period.

The test rig is designed for thestudy of thermodynamics of vapour Compression refrigeration cycle by way ofdemonstration and experimentation.

It has a facility to measure variousparameters for experimentation. Ice cans are kept in liquid tank, which iscooled by the refrigerant evaporator.

As conventional ice plants take 12-24hours to complete the cycle, this ice plant is specially designed todemonstrate process of ice formation to be complete within period of 4 hoursand hence it is most suitable for laboratory use.

Experimentation

To study the working of Ice Plant.

To Study the refrigerator circuit.

To Calculate Co-efficient ofperformance

Utilities Required

Electric supply: Single Phase, 220V AC, 50 Hz, 10 Amp with earthconnection.

Water supply and drainage

Floor area: 1.5 m x 1m

Ethyl Glycolet: 25 Ltr.
