Specification:

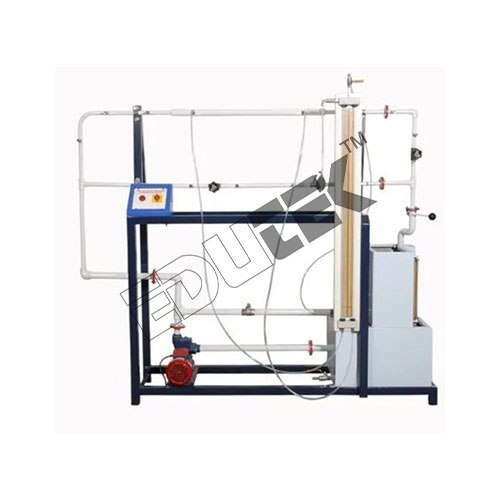

LOSSESDUE TO PIPE FITTING, SUDDEN ENLARGEMENT & CONTRACTION
Theset up consists of a 1/2 bend and elbow, a sudden expansion & suddencontraction fitting from 15mm to 25mm, ball valve and gate valve.
Pressuretapings are provided at inlet and outlet of these fittings under test. Adifferential manometer fitted in the line gives pressure loss of individualfittings.
Presentsetup is self-contained water re-circulating unit, provided with a sump tankand a centrifugal pump etc. Flow control valve and by-pass valve are fitted inwater line to conduct the experiment on different flow rates. Flow rate ofwater is measured with the help of measuring tank and stop watch.
Control Panel Comprises Of: Standard Make On/off Switch, MainsIndicator, Etc.
Sump Tank Capacity: 50 Ltrs
Flow Measurement: Using Measuring Tank with Pedometer,
Capacity: 25 Ltrs
Manometer Fluid: Mercury (Hg) - 250 Gm
Sudden Enlargement: From 15 mm to 25 mm
Sudden Contraction: From 25 mm to 15 mm
Bend: 1/2
Elbow: 1/2
Ball Valve: 1/2
Gate Valve: 1/2 Inches
Water Circulation: FHP Pump, Crompton Makes
Pressure Drop Measurement: Differential Manometer
Stop Watch: Electronic
