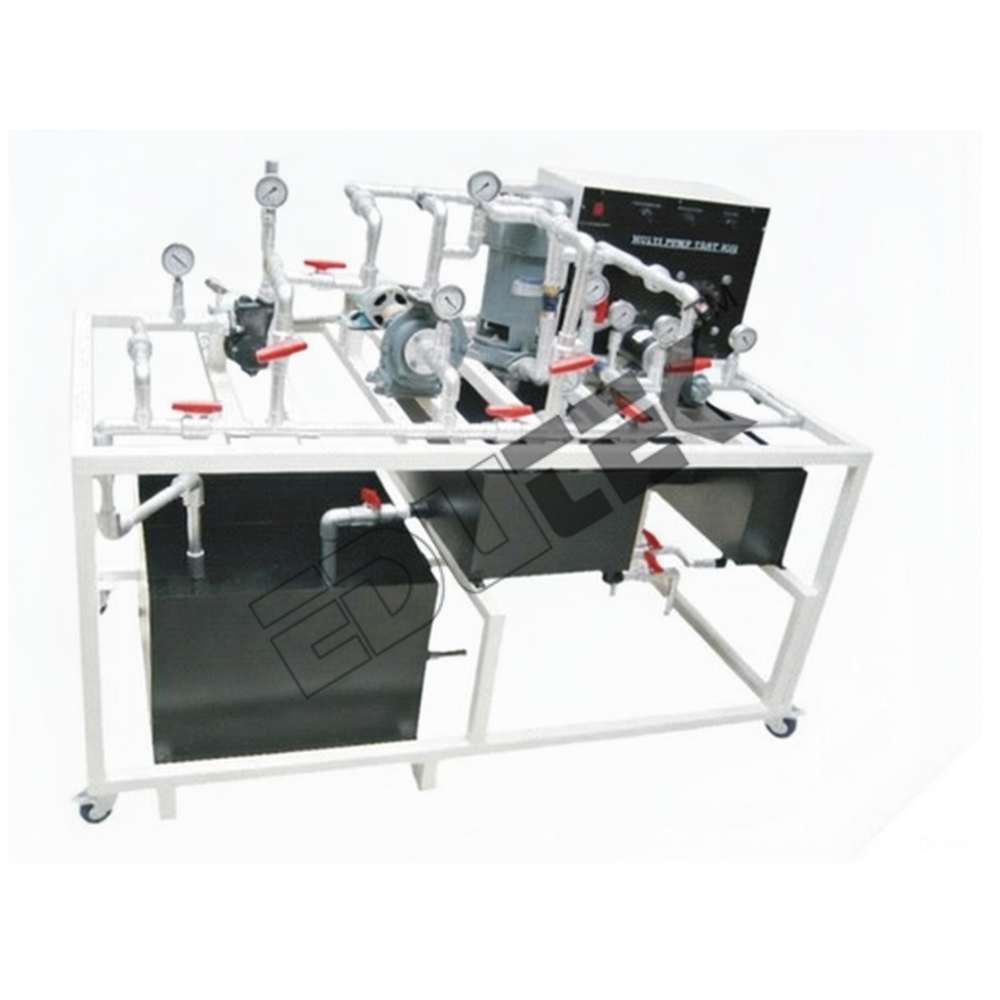

MULTI PUMP TEST RIG

Request to Call Back Send Inquiry

Product Description

MULTI-PUMP TEST RIG

Radial flow reaction turbine.
The unit has a sump tank and a centrifugal pump driven by electric motor to supply and re-circulate water.
The turbine is mounted with the axis horizontal on the top of the robust mobile frame.
Water enters the turbine casing through a variable area flow meter.
A hand operated valve should be provided at the inlet to control inlet head and flow rate.
Instrumentation and control panel should be included.
The complete unit should be manufactured from corrosion resistant materials.
List of Experiments to be achieved.
Study of construction of Francis Turbine.
Determination constant head characteristics curve.
Determination of constant speed characteristics curves.
Determination of constant efficiency curves.
