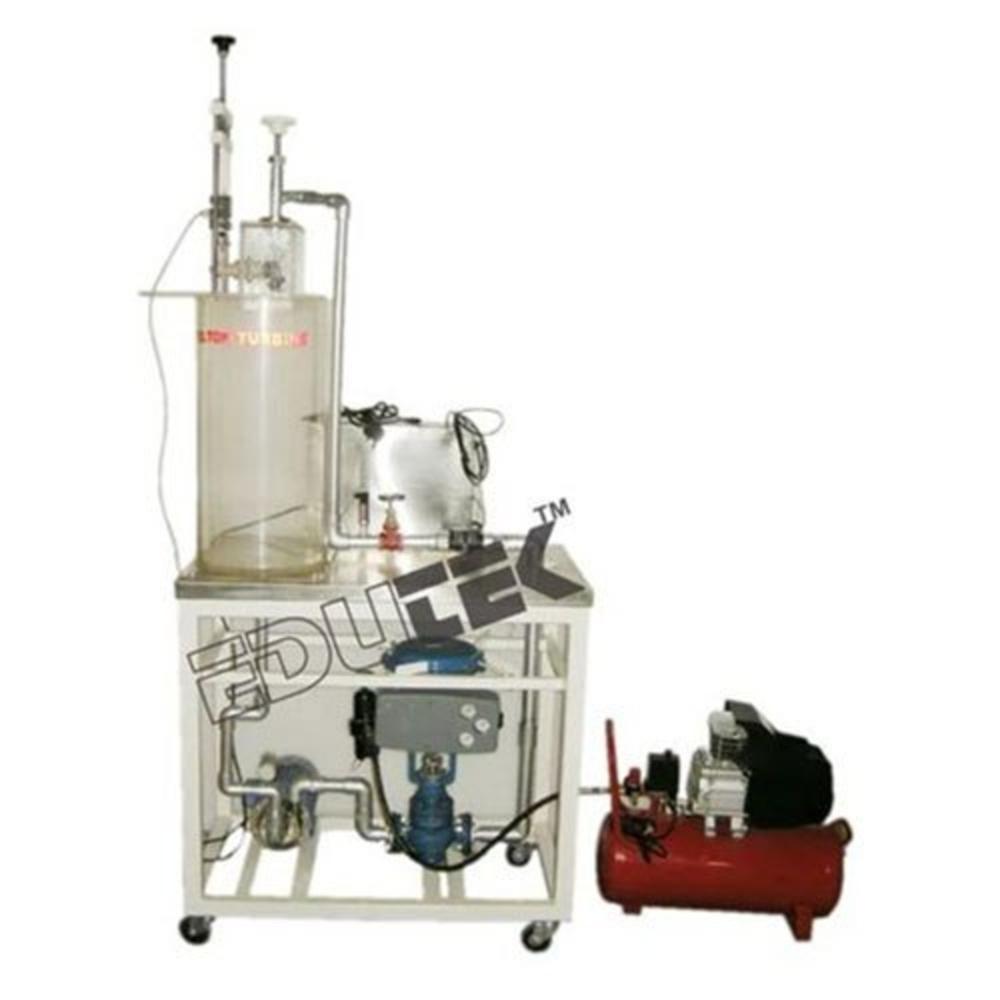

PELTON WHEEL TURBINE TEST RIG

Product Description

Specification:

PELTONWHEEL TURBINE TEST RIG

We are able to offer a wide range ofPelton Wheel Test Rig.

It is manufactured using high graderaw material and innovative technology in compliance with globally acceptednorms of quality. The offered range is widely acclaimed in the market, owing toits specific attributes like high efficiency and fine finishing.

Our Clients can avail the peltonwheel test rig from us within stipulated time period.

Features of Pelton Turbine

Easy to functionality

Sturdy construction

Negligible maintenance

Other Descriptions of Pelton Turbine

The unit is designed to show studentshow an impulse turbine works and test its performance

The turbine power is adjusted bymeans of the nozzle cross-section

The experimental unit consists of thePelton wheel, a needle nozzle used as control device (control flow rate), arope brake dynamometer for loading the turbine and a housing with a transparentfront panel

The transparent cover enables you toobserve the water flow, the wheel movement during operation

The pressure at the turbine inlet isrecorded with a pressure gauge

A spring balance to measure brakepower and a digital RPM indicator are attached to wheel shaft

Thus, the mechanical power output ofthe turbine can be determined. Flow rate measurement are provided by orificemeter

Specifications of Pelton Turbine

Pelton Wheel: 300 mm Diameter with 18 Buckets

Sump tank capacity: 200 liters High Grade Plastic

Flow rate measurement: Orifice meter with Burdon typepressure gauge

Pump: Monoblock type, 4 litre/sec, Head 20 mtrs; Motor 5 HP

Piping with necessary Valves andFittings

Digital RPM Indicator

Detailed Technical Manual and On-siteTraining
