water flows through a pipe system, the flow resistances causes pressure losses to occur at pipe fittings and valves and fittings.

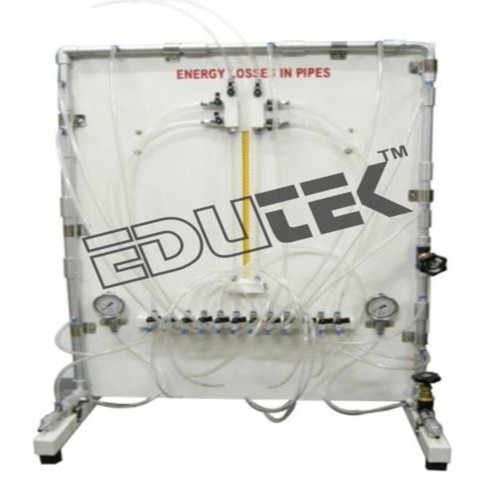

The unit can be used to investigate and visualise the pressure losses in pipe elements. The experimental unit can be used to assess how different pipe geometries affect the flow.
The experimental unit comprises a pipe section containing several pipe elements with different flow resistances, as well as a contraction and enlargement piece. There is also a ball valve integrated in the pipe. There are pressure measuring points with annular chambers upstream and downstream of the pipe elements, which ensure accurate pressure measurement.
The pressure measuring points can be connected in pairs to a 6 tube manometers in order to determine the pressure loss of a pipe element.
The experimental unit is positioned easily and securely on the work surface of the base module. The water is supplied and the flow rate measured. Alternatively, the experimental unit can be operated by the laboratory supply.
The well-structured instructional material sets out the fundamentals and provides a step-by-step guide through the experiments.
In conjunction with Unit for Air Flow Principles
Measurement of pressure losses in
Straight pipe sections
A 90° pipe bend
A 90° pipe angle
Investigate the effect of differently shaped pipe inlets
Uninterrupted air inlet
Sudden enlargement
Specification
Investigate pressure losses in various pipe elements
Accessory for Unit Principles of Air Flow
Combine different pipes from pipe elements
Two interchangeable pipe inlets: sudden enlargement or uninterrupted air inlet
Measuring points on straight pipe sections for pressure measurement
Measuring points at pipe inlets for velocity measurement
Display and analysis of the measured values using the software in Principles of Air Flow Unit
