PROJECTION FLOW METER

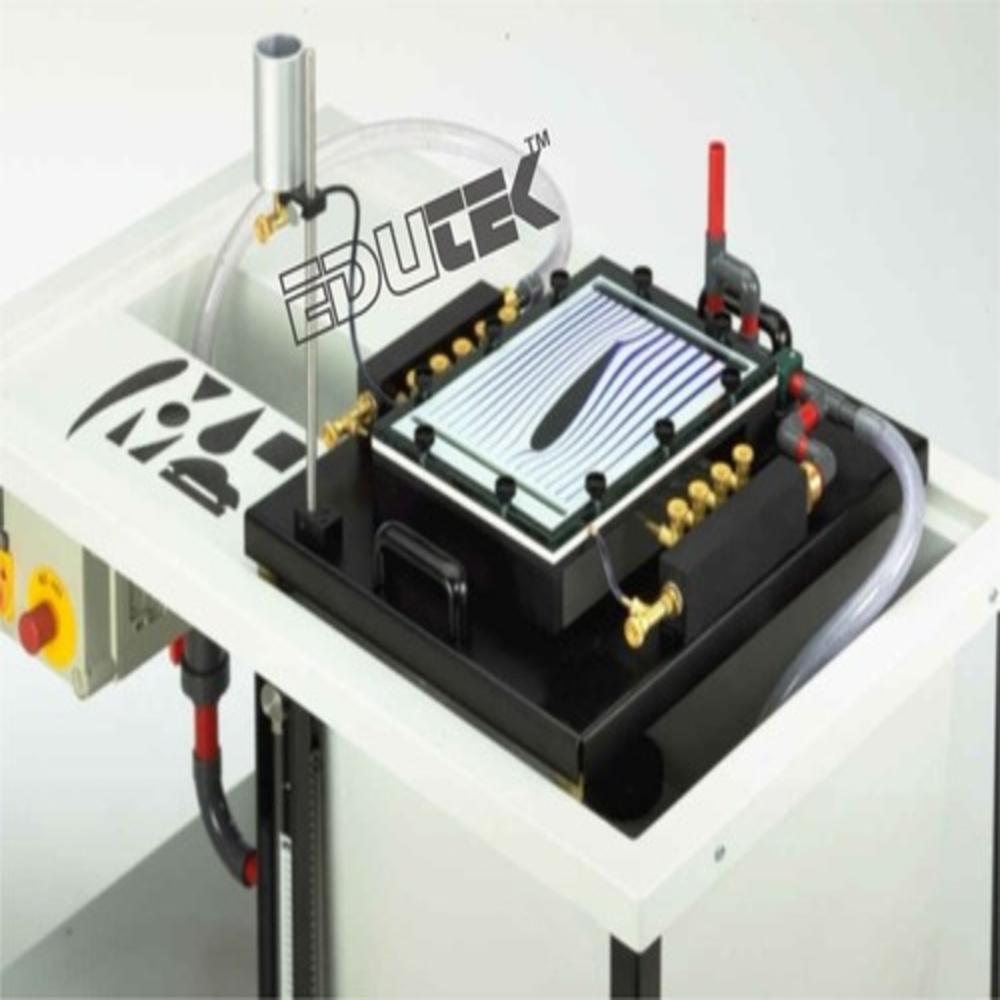

During The Experiments On Various Drag Bodies, Ink Is Injected Through Fine Nozzles Into A Horizontal Flow Chamber. The Chamber Is Covered With A Glass Panel So That The Streamlines Can Be Clearly Observed. Flow Sources And Sinks Can Be Simulated Using 4 Additional Holes In The Chamber. The Distribution And Amount Of Ink Injected Can Be Adjusted With Manual Valves. The Water Supply Is Provided Either From The Laboratory Mains Or Using The Hm 150 (Closed Water Circuit).
Made of transparent plexiglass,
Overall dimensions: 690x299x300h,
Base made of stainless steel sheet, 1,5 mm thickness.
