Specification:

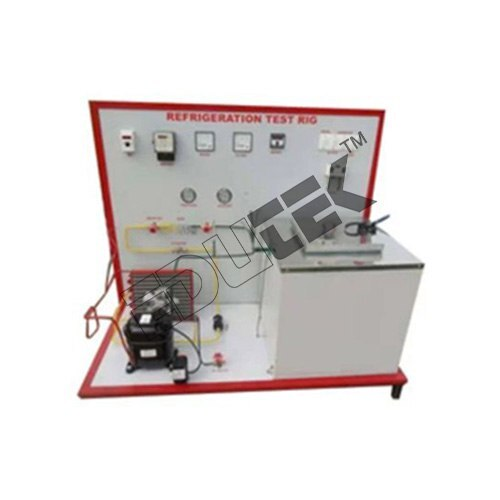

REFRIGERATION TEST RIG
Edutek is one of the leadingmanufacturer and exporter of engineering lab Equipment.
Refrigeration Test Rig The set updemonstrates the students about the basic principal of a refrigeration cycle.The test rig is designed for the study of thermodynamics of vapour Compressionrefrigeration cycle by way of demonstration and experimentation. It has afacility to measure various parameters for experimentation.
Description:
The set up demonstrates the studentsabout the basic principal of a refrigeration cycle. The test rig is designedfor the study of thermodynamics of vapour Compression refrigeration cycle byway of demonstration and experimentation. It has a facility to measure variousparameters for experimentation.
Experimentation:
To calculate refrigerant capacity.
To Study the Vapour Compressionrefrigerator cycle.
To Calculate Co-efficient ofperformance and draw P-H Diagram.
Utilities Required:
Electric supply 5A-220 V AC
Water supply and drainage
Floor area: 1.5 m x 1m
Technical Details:
Compressor: Hermitically sealed compressor.
Capacity: 1/3 Ton, Kirloskar make.
Agitator: Compatible capacity.
Condenser: Air cooled compatible to 1/3 Ton compressor
Condenser cooling fan: Compatible capacity with permanentlubricated motor.
Evaporator: Made of Stainless Steel, Insulated with ceramic wool/P.U.F.
Rotameter: Range 6 to 60 LPH
Expansion Device: Capillary Tube, Compatible Capacity.
Pressure Gauges: 2 Nos. Safety Control: overload and over currentprotectors for compressor and Time delay circuit. Temperature Sensor: RTDPT-100 Type.
Control Panel comprises of:
Digital Voltmeter: 0-300 V
