SIGNAL INJECTOR

Get a Price/Quote

Product Details:

Automation Grade Manual
Feature Signal injection for testing electronic circuits
Temperature Range 0C to 50C
Warranty 1 Year
Voltage 5V - 12V
Power Source External Power Supply
Frequency High Frequency
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

SIGNAL INJECTOR Product Specifications

Usage Circuit Testing
Equipment Materials Plastic Metal
Automation Grade Manual
Feature Signal injection for testing electronic circuits
Temperature Range 0C to 50C
Warranty 1 Year
Type Handheld Signal Injector
Voltage 5V - 12V
Power Source External Power Supply
Frequency High Frequency
Core Components Probe Circuit Board Wires
Weight Lightweight
Accuracy High
Model No EDU-71M

Product Description

SIGNAL INJECTOR

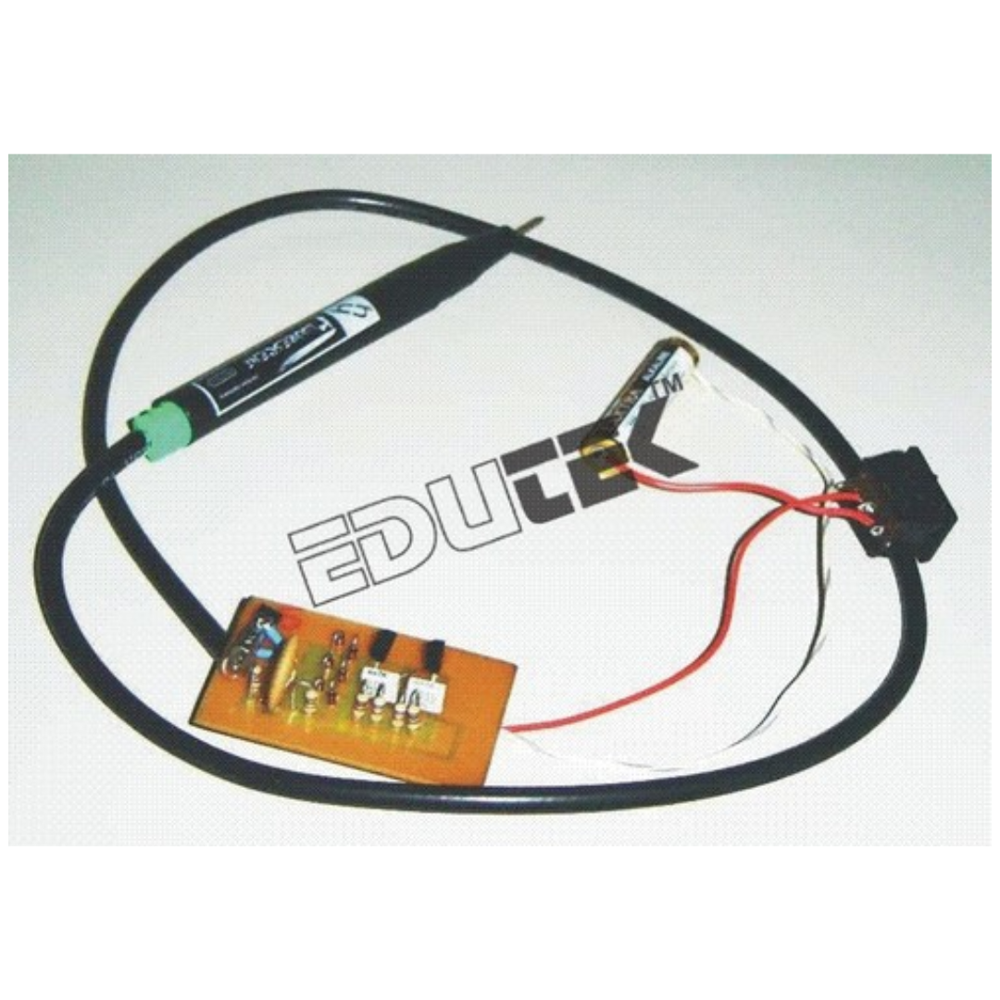

Signal tracer /injector has been designed to inject or detect a specific signal into an audio circuit in need of repair (such as amplifiers, radios, tone controls) so as to detect the fault. In this way problems can be traced more easily. The signal tracer may also be used as a simple monitor or amplifier.

Specifications :

Output power: 0.5W / 8ohm.
Power supply: 7-9VAC or 9-12VDC / 150mA.
Injector: 0-2.5Vrms output (adjustable).
Output impedance: 1.5Kohm Frequency: ± 1kHz Tracer: 3.5mV to 10Vrms sensitivity (adjustable).
Gain: 40dB.
Input impedance: 50Kohm.

FAQs of SIGNAL INJECTOR:

Q: What is the temperature range of the SIGNAL INJECTOR Model No: EDU-71M?

A: The temperature range of the SIGNAL INJECTOR Model No: EDU-71M is 0C to 50C.

Q: What is the power source for the SIGNAL INJECTOR Model No: EDU-71M?

A: The power source for the SIGNAL INJECTOR Model No: EDU-71M is an external power supply.

Q: What is the warranty period for the SIGNAL INJECTOR Model No: EDU-71M?

A: The warranty period for the SIGNAL INJECTOR Model No: EDU-71M is 1 year.

Q: What type of signal injection does the SIGNAL INJECTOR Model No: EDU-71M provide?

A: The SIGNAL INJECTOR Model No: EDU-71M features signal injection for testing electronic circuits.

Q: What is the frequency range of the SIGNAL INJECTOR Model No: EDU-71M?

A: The SIGNAL INJECTOR Model No: EDU-71M operates at high frequency.
