THREE HINGED ARCH APPARATUS

500 INR/Piece

Get a Price/Quote

Product Details:

Product Type THREE HINGED ARCH APPARATUS
Application Mechanical Engineering Lab Equipment
Usage Mechanical Engineering Lab Equipment
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

THREE HINGED ARCH APPARATUS Price And Quantity

Minimum Order Quantity 1 Piece
Price 500 INR/Piece

THREE HINGED ARCH APPARATUS Product Specifications

Product Type THREE HINGED ARCH APPARATUS
Application Mechanical Engineering Lab Equipment
Usage Mechanical Engineering Lab Equipment

THREE HINGED ARCH APPARATUS Trade Information

Payment Terms Cash Advance (CA) Cash in Advance (CID) Cheque Telegraphic Transfer (T/T) Letter of Credit (L/C)
Packaging Details Carton Box, Export Quality also Available
Main Export Market(s) Asia Middle East Africa
Main Domestic Market All India
Certifications ISO 9001, 14001, CE

Product Description

Specification:

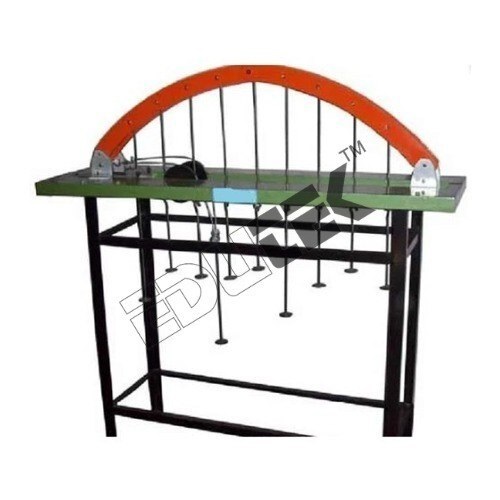

THREE HINGED ARCH APPARATUS

Our precious clients can avail fromus an exclusive array of Three Hinged Arch Apparatus.

The mild steel model should have aspan of 100cm and rise 25cm, with hinges at supports and crown.

One of the ends should rests onrollers.

Along the horizontal span of the archvarious points are marked at equidistant for the application of load.

This being a statically determinatestructure, the horizontal thrust developed under the action of any load systemcan be theoretically calculated and will also be measured directly byneutralizing the outward movement of the roller end.

A dial gauge with 25mm travel (withmagnetic base) may be supplied with the apparatus.

Apparatus to be supplied should be completewith a supporting stand and a set of weights.
