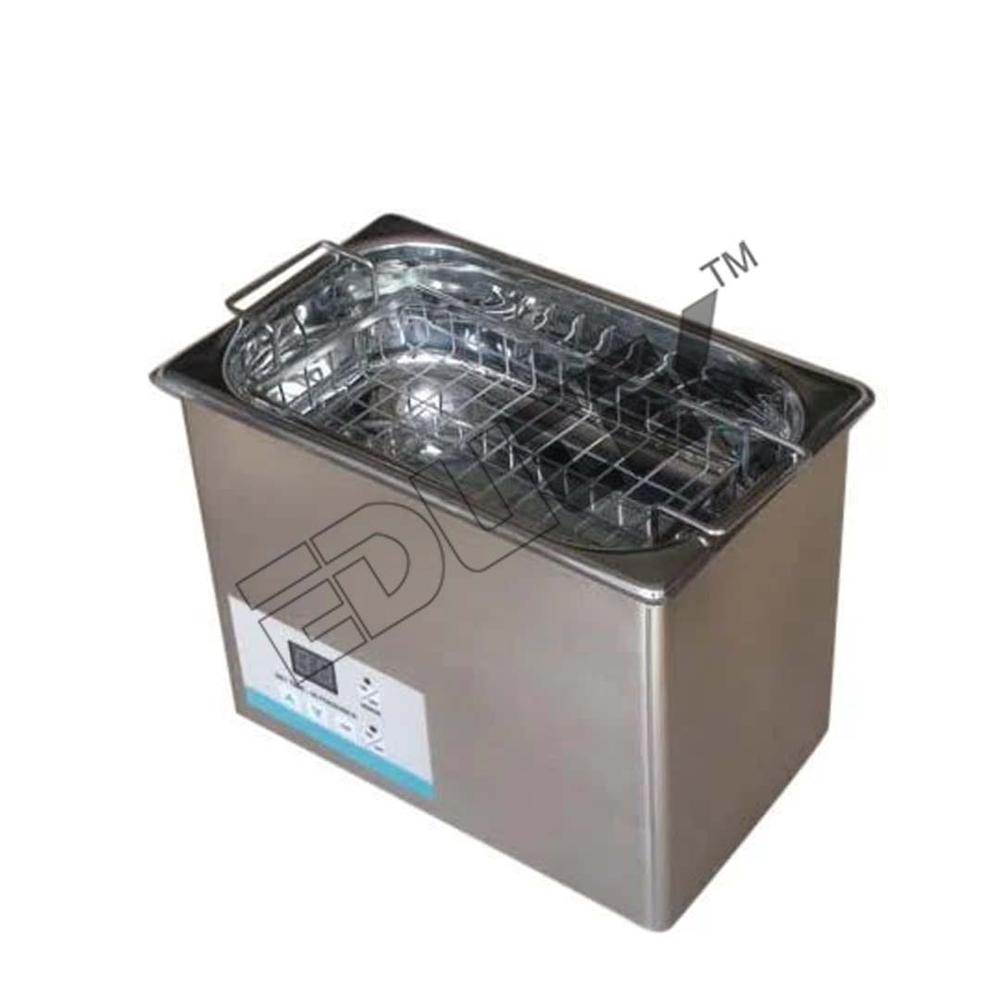

Ultrasonic Baths Sonicator

Product Description

Ultrasonic Baths Sonicator

Principle of Ultrasonic Cleaning:

Ultrasonics (Ultrasound) is the sound which human beings cannot hear. Ultrasound utilizes frequencies from and above 18khz (18,000 cycles per sound) High frequency electrical energy is converted into ultrasound waves by means of ultrasonic Transducers, which are bonded on the base of S. Cleaning Tank. These high frequency sound waves create in the liquid countless, Microscopic vacuum Bubbles which rapidly expand and collapse. This phenomenon is CAVITATION. These bubbles act like miniature high speed brushes, driving the liquid in to all openings and minute recesses of the Object immersed in the liquid. Intense scrubbing of Cavitation cleans away all the dirt and soil from the object immersed and the object is perfectly cleaned. Intricate objects can be cleaned with either complete or little Dismantling.

Applications:

• Laboratory: For Glassware, Filter, Cleaning and HPLC Mobile, Phase Degassing
• Industrial: Printed Circuit Boards, Semi-Conductors, Electronic Components, Precious Parts and Mechanisms
• Medical: Dental and Surgical Instruments
• Optical: Spectacles, Spectacle Frames, Lenses
• Jewellery: For all kinds of Jewellery, Precious Stones etc.
• TO REMOVE: Dust, Oils, Greases, Polishing Compound, Waxes, Swarf, Stains, Soils and any other Contaminants.

Silent Features :

•     Easy to operates & maintain with one piece S.S. Tank
•     Indigenously manufactured with advanced MOSFET technology with Auto-tuning facility
•     Digital Tuning of Transducers with Generators to avoid any frequency shifted even during demanding applications
•     Compact, rugged and highly durable systems
•     Extensively protected electronic circuits means longer and safer Operations

Technical Specifications:

•     Operating frequency 33+-3KHz, for all general purpose cleaning is highly recommended
•     Input Voltage range of 170V AC- 270V AC, 50 Hz, 1 Ph
•     Micro Controller based timer range 0 to 30/99 minutes
•     Thermostatic controlled temperature controller
•     Other capacity other than mentioned are also available as per customer requirement

MODELS AVAILABLE :

•     1.0 Litre to 9 Litres
•     Heater Optional
•     Body S.S. or M.S. Powder Coated

Capacity	Tank size	Over all Dimension	Wattage
	(LxBxH)mm	(LxBxH)mm
1.5 Lit.	240 x 135 x 65	265 x 160 x 180	60W
3.5 Lit.	300 x 150 x100	330 x 175 x 250	120W
6.5 Lit.	300 x 150 x150	450 x 200 x 350	200W
9 Lit.	300 x 200 x150	450 x 300 x 370	250W
