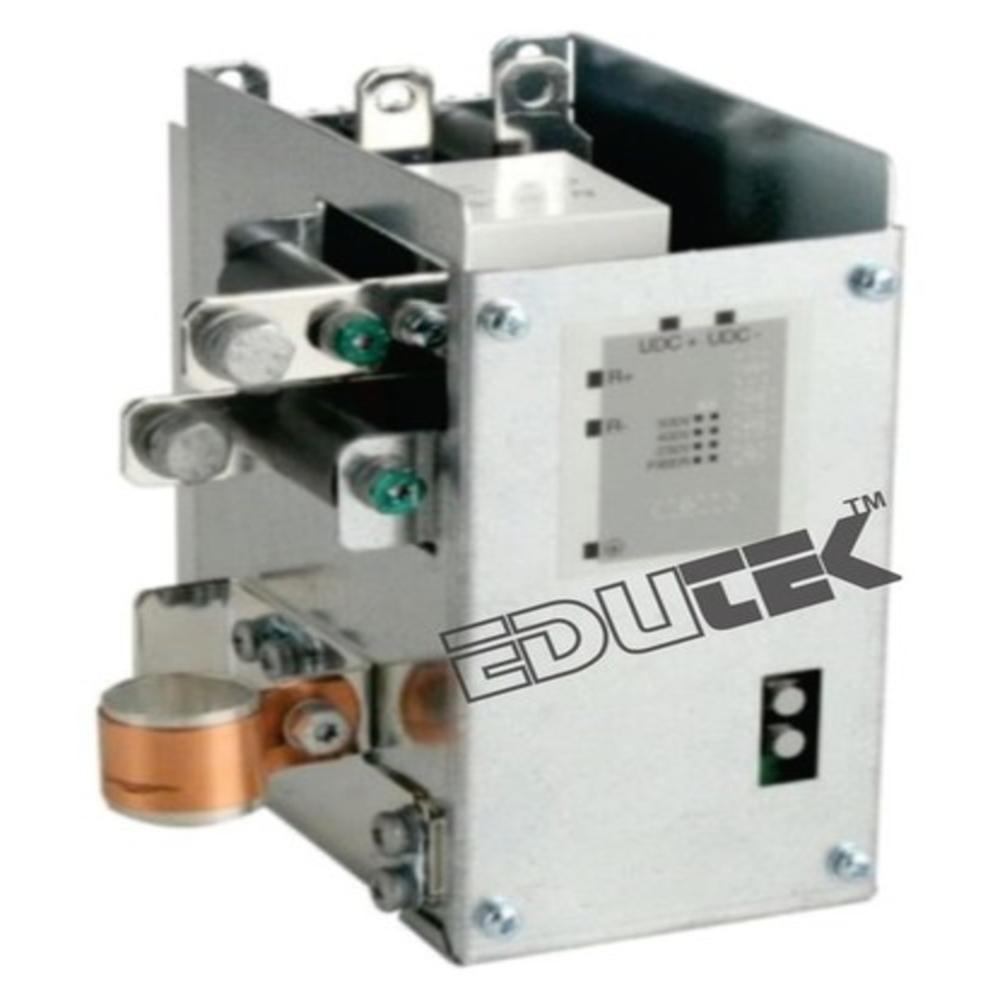

UNIVERSAL DRIVE AND BRAKE UNIT
The base module of the on which students can carry out experiments on fluid machinery. This equipment series covers five training courses on water and oil pumps, turbines, and systems engineering and engine technologies.
The complete experimental setup includes the base module the fluid energy machine to be investigated and, where needed, a supply unit or a test stand. The fluid energy machine under investigation is connected to the base module via a belt drive. Fasteners connect the and the trainer to the accessories.
The main function of is to provide the drive or brake power necessary to study the selected driving or driven machine. This power is generated by an air-cooled asynchronous motor with a frequency converter. The asynchronous motor operates as a generator or a motor, as required. As a generator, it acts as a brake on the fluid energy machine, in this case motors or turbines, and diverts the energy. As a motor, it powers the fluid energy machine under investigation, e.g. pumps or compressors.
The energy that is created during the braking process in generator mode is converted into heat at a load resistor. The drive and/or brake torque can be adjusted precisely. It is measured with a force sensor. For this purpose, the asynchronous motor is suspended as a pendulum. The motor can be moved to tension the V-belt. is fitted with digital displays for speed and torque.
The unit perform the following experiment and investigations:
Learning Objectives / Experiments
  • Asynchronous motor as a drive or brake unit in connection with one of the accessories
  • Torque measurement
  • Speed measurement
  • Specification
  • Drive and brake unit used for studying different driving or driven machines
  • Asynchronous motor with frequency converter allows 4- (Guadrant operation: generator or motor mode
  • Asynchronous motor with pendulum suspension, torque measurement via lever arm and force sensor
  • Optical sensor for recording the speed
  • Data exchange between base module and accessories through data cable
  • Measured values for speed and torque are digitally displayed on the device
Technical Data:
Asynchronous motor with frequency converter
  • Power: 2200W
  • Max. speed: approx. 3000min-1
  • Max. torque: approx. 12Nm
V-belt operation:
  • Length of V-belt: 1157mm, 1180mm, 1250mm
  • Type of V-belt: SPA
  • Diameter of V-belt pulley: 125mm
  • Resistive load: 72 ohm, 2400W
Measuring ranges:
  • Torque: -15...15Nm
  • Speed: 0...5000min-1
Dimensions and Weight:
  • LxWxH: 1000 x 800 x 1260mm
  • Weight: approx. 142kg
