WHILING OF SHAFT DEMONSTRATION

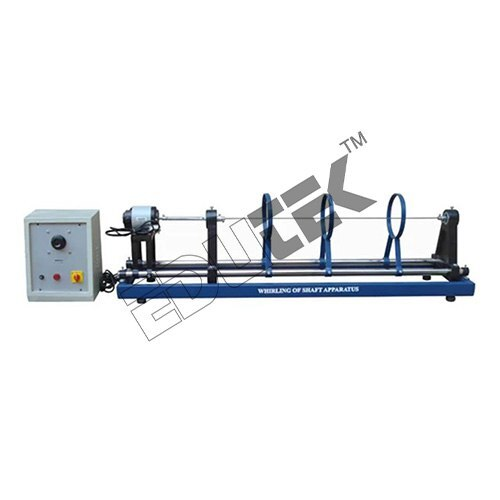

The setup is designed to study thewhirling of shafts.

The set-up consists of a sturdy M.S.frame, variable speed motor bearing holders etc.

Different bearing can be fitted inbearing block to have different end conditions i.e. (i) both end fixed, (ii)one end free and one end fixed etc. A variable speed motor is provided to drivethe shaft along with speed control unit as the test is destructive, hence theshaft cannot be used again.

Experiments

Display of various modes of whril fora shaft with:

Both ends directionally fixed.

One ends fixed and other free

Both ends directionally free.

Modes of vibrations can be studiedand frequency can be measured in each case.

Utilities Required

Floor area of 2m x 0.5 m

Electric supply of 230V, AC
