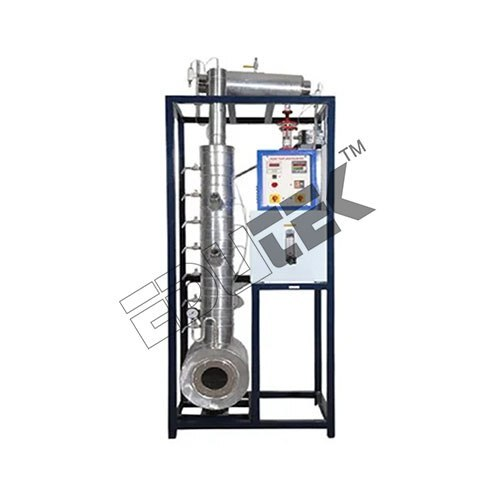

ABSORPTION IN SIEVE PLATE COLUMN APPARATUS

Product Description

Specification:

ABSORPTION IN SIEVE PLATE COLUMN APPARATUS

The setup is designed to demonstrateprinciples of distillation in a Sieve Plate Column. The column is made ofStainless Steel material with seven sieve trays. An electrically heatedre-boiler is installed at the bottom of the column.

The bottom product is collected inthe tank. The vapors form the top of column are condensed in the shell and tubetype condenser by circulating cooling water supplied by laboratory overheadtank.

The condensate is divided into refluxand distillate by automatic reflux divider and R/D Ratio can be varied. Refluxis fed back to the column and distillate is received in a receiving tank. Thecomplete column is insulated for minimizing the heat loss. Instrumentation isdone for pressure & temp. Measurement wherever is necessary

Experiments

To study the Sieve Plate DistillationColumn

Features

Stainless Steel tanks and wettedparts

Superb Painted structure

Simple to operate & maintain

Compact & standalone set up

Utilities Required

Drain

Electricity Supply: 1Phase, 220 V AC, 6.5 kW

Required Chemicals

Refractrometer for analysis
