KINETIC OF DISSOLUTION OF BENZOIC ACID APPARATUS

Product Description

Specification:

KINETIC OF DISSOLUTION OF BENZOIC ACID APPARATUS

Description

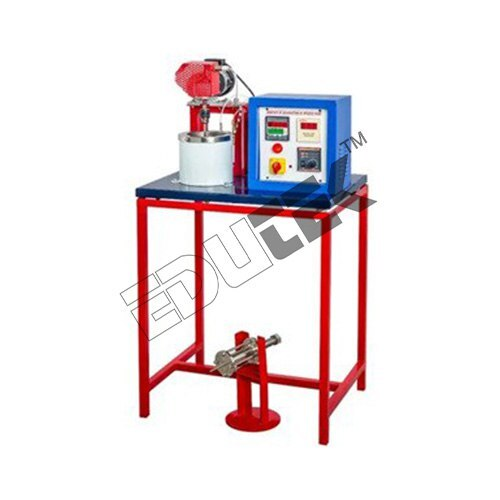

The setup consists of a Reactor inwhich solid cylinder of Benzoic Acid is placed and water is stirred by means ofa variable speed mixer. Baffles are also provided. The Reactor is made ofStainless Steel.

A Peltilizer is provided to make thesolid cylinder of size 1" diameter and 2" height of Benzoic Acid.

Experimentation/Learning Objectives

To study the Kinetics of dissolutionof Benzoic Acid.

Utilities Required

Electricity Supply: Single Phase, 220V AC, 50 Hz, 5-15 Amp combined socket with earth connection. Earth voltageshould be less than 5 volts.

Water Supply.

Floor Drain.

Floor Area Required: 1.0 m x 0.5 m.

Instruments, Laboratory Glassware andChemicals required for analysis as per the system adopted.

Technical Details

Chamber: Material Stainless Steel, Capacity 1 Ltrs. (approx.)

Peltilizer: 1" Diameter, 2" Height (approx.). with spanner(compatible size)

Stirrer: Material Stainless Steel Impeller and shaft coupled with FHPmotor

Control panel comprises of: Standard make on/off switch, MainsIndicator etc.
