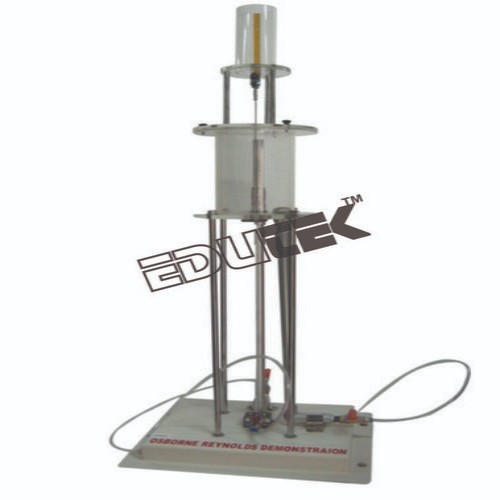

OSBORNE REYNOLDS EXPERIMENT
The Osborne Reynolds experiment is used to display laminar and turbulent flows. During the experiment it is possible to observe the transition from laminar to turbulent flow after a limiting velocity. The Reynolds number is used to assess whether a flow is laminar or turbulent.
With the streamlines during laminar or turbulent flow are displayed in colour with the aid of an injected contrast medium (ink). The experimental results can be used to determine the critical Reynolds number.
The experimental unit consists of a transparent pipe section through which water flows, with flow-optimised inlet. A valve can be used to adjust the flow rate in the pipe section. Ink is injected into the flowing water. A layer of glass beads in the water tank ensures an even and low-turbulence flow.
The water is supplied and the flow rate measured the experimental unit can be operated by the laboratory supply.
The well-structured instructional material sets out the fundamentals and provides a step -by- step guide through the experiments.
Learning Objectives / Experiments
- Visualisation of laminar flow
- Visualisation of the transition zone
- Visualisation of turbulent flow
- Determination of the critical Reynolds number
Specification:
- Visualisation of laminar and turbulent flow in the Osborne Reynolds experiment
- Water as flowing medium and ink as contrast medium
- Vertical glass pipe section
- Water tank with glass beads to stabilise the flow
- Flow rate in the pipe section can be adjusted via a valve
- Flow rate determined by base module
- Water supply using base module or via laboratory supply
Technical Data:
Water tank
- Capacity: 2200 mL
Pipe section:
- Length: 675 mm
- Inside diameter: 10 mm
Tank for ink:
- Capacity: approx. 250 mL
Dimensions and Weight:
- LxWxH: 415x415x1250 mm
- Empty weight: approx. 22 kg
