Specification:

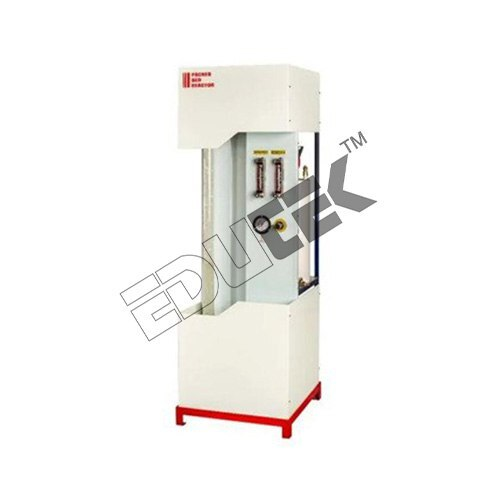

PACKED BED REACTOR APPARATUS
The setup consists of a glass columnpacked with Rasching Rings and two feed tanks. Reactants are fed to the reactorthrough liquid distributor, fitted at the bottom of the column.
Rotameters are provided to measurethe individual flow of Chemicals. The flow rate can be adjusted by operatingthe needle valves provided on respective Rotameter.
The compressed air is used forcirculation of feed. Samples can be taken periodically from the top outlet ofreactor. Pressure Regulator &Pressure Gauge are fitted in the compressedair line.
Product Specification
Reactor Column: Material Borosilicate Glass Volume 1.2 Ltrs.(Approx.)
Packing: Rasching Rings, Material Borosilicate Glass. Size 6-8 mm(approx.)
Feed Tank: Material Stainless Steel, Capacity 20 Ltrs.
Feed Circulation: By compressed air
Flow Measurement: Rotameter 2Nos. (One each forReactants).
Piping: Stainless Steel and PU Pipe
