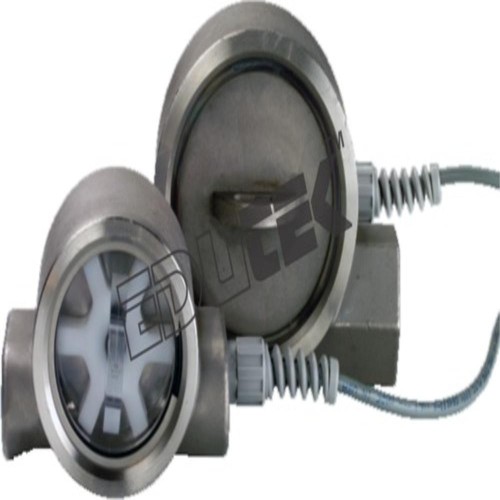

PADDLE WHEEL FLOW METER
The vane impeller flow meter is installed in the water circuit of the trainer.
The kinetic energy of the flowing water causes angular rotation of the paddle wheel, the frequency of which is proportional to the flow rate of the water. The angular frequency is measured by a ring magnet and converted by a Hall sensor into an analogue voltage signal. This voltage signal corresponds to the flow rate of the fluid.
A display indicates the flow rate. The necessary connections are provided so that the pressure loss can be determined. The transparent front makes the paddle wheel visible, thus aiding understanding of the operating principle.
Learning Objectives / Experiments
  • Familiarisation with the principle of operation
  • Flow measurement
  • Plotting a pressure loss curve
  • Comparison with other flow meters
Specification
  • Paddle wheel flow meter as accessory for flow meter trainer
  • Non-contact recording of rotation speed by ring magnet and Hall sensor
  • Display indicating flow rate
  • Connections to facilitate pressure loss measurement
  • Connections to supply auxiliary power via flow meter trainer
  • Vrtical and horizontal installation possible
Technical Data
  • Measuring range: 2...48L/min
  • Auxiliary power: 24VDC
  • Pipe connections: DN 32
Dimensions and Weight
  • LxWxH: 840x230x160mm
  • Weight: approx. 8.5kg
