Specification:

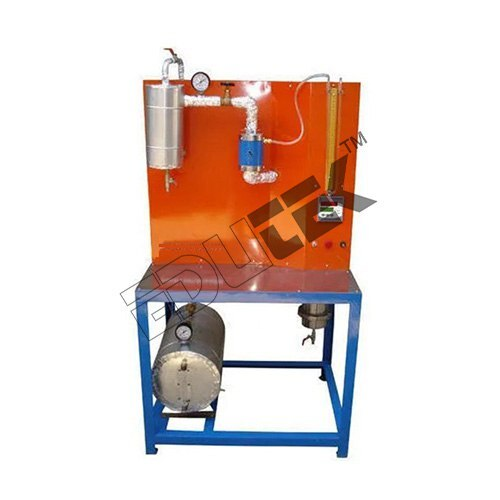

SEPARATING& THROTTLING CALORIMETER APPARATUS/ SEPARATING CALORIMETER APPARATUS/ THROTTLINGCALORIMETER APPARATUS
Description
Separating Calorimeter: - It consists of two concentricchambers, the inner chamber and the outer chamber, which communicates with eachother through an opening at the top.
As the steam discharges through themetal basket, which has a large number of holes, the water particles due totheir heavier momentum get separated from the steam and collect in the chamber.
The comparatively dry steam in theinner chamber moves up and then down aging through the annular space betweenthe two chambers and enters the Throttling Calorimeter.
Throttling Calorimeter: - It consists a narrow throat(Orifice). Pressure and temperature are measured by pressure gauge andthermometer. The steam after throttling process passes through the heatexchanger and condensate is collected. Steam Generator is also provided tosupply the saturated steam (Max.) at 2kg/cm2 pressure.
Experimentation/Learning Objectives
To find the dryness fraction ofsteam.
Utilities Required
Electric Supply: Single Phase, 220 V, 10 Amp.
Continuous Water Supply: 10 LPM Approx. at kg/cm2 pressure
Technical Details
Separating Chamber: Compatible capacity made ofStainless Steel insulated with Ceramic wool with water level indicator.
Throttling Chamber: Compatible capacity provided withgauge to measure inlet Pressure before throttling
Heat Exchanger: For Condensing steam after throttling chamber
Steam Generator: Compatible capacity with digital temperaturecontroller to control the temperature inside the steam generator.
Differential pressure: By manometer Measurement
Steam pressure measurement: By Pressure gauge
