Specification:

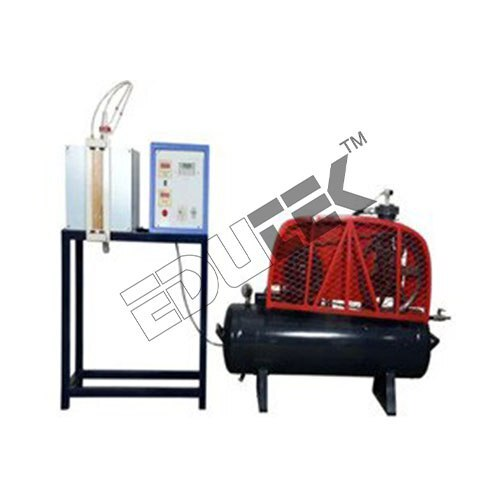

SINGLE STAGE AIR COMPRESSOR TEST RIG
Product Description
Single Stage Air Compressor Test Rigconsists of a single stage reciprocating type air compressor driven by 1 HPmotor through a belt. The outlet of the air compressor is connected toreservoir (Tank) and suction is connected to another air tank with an orificeplate and a water manometer.
Bellow is fitted on one side of thisair tank to regulate the flow. Temperature of inlet and outlet of air andpressure at outlet can be measured by Temperature sensor and pressure gauge.
Experimentation:
To calculate the volumetricefficiency.
To calculate isothermal HP.
To calculate compression ratio.
Utilities Required:
Tachometer to measure RPM
Technical Details:
Compressor: Single Stage, Capacity 4 CFM (max.)
Manifold Tank: Suitable Capacity
Flow Measurement: Orificemeter with Manometer
Temp. Measurement: RTD PT-100 type sensor (2 Nos.)
Pressure Gauge: Bourdon Type
Energy measurement: Electronic Energy meter, L&Tmake.
MCB: For overload protection.
