Specification:

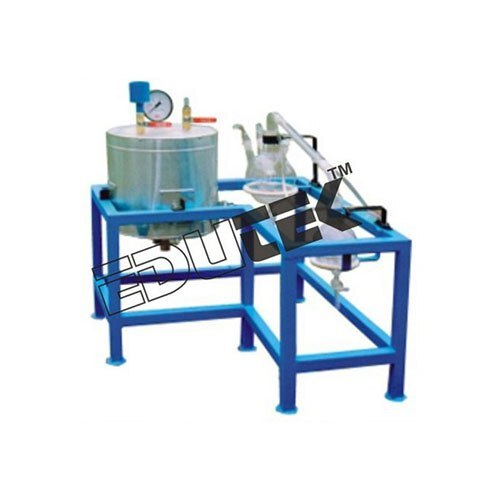

STEAM DISTILLATION COLUMN APPARATUS
The equipment consists of jacketedpressure vessel for distillation. Steam from a steam generator can either beallowed to enter in the outer jacket or in the vessel.
The vapours form the top of thevessel are condensed in the shell and tube type condenser by circulatingcooling water, supplied by laboratory overhead tank.
The condensate is collected in aseparating chamber. The set-up is fitted with steam trap, control valves,pressure gauge, temperature sensors and other instrumentations required. Steamdistillation is used industrially to purify liquids, which are immiscible withwater, and to remove bad odors from oils.
When water is added to a high boilingliquid immiscible with it, the total pressure exerted by the mixture above theliquid surface will be the sum of the vapor pressures of the pure componentsand therefore the boiling point of the mixture will be less than that of waterat the given temperature.
Because of this, even high boilingliquids are made to boil at low temperature and their decomposition is avoided.The steam consumption for steam distillation process is normally high.
Experimentation
To study the characteristics of SteamDistillation.
Efficiency of simple steamdistillation set-up.
