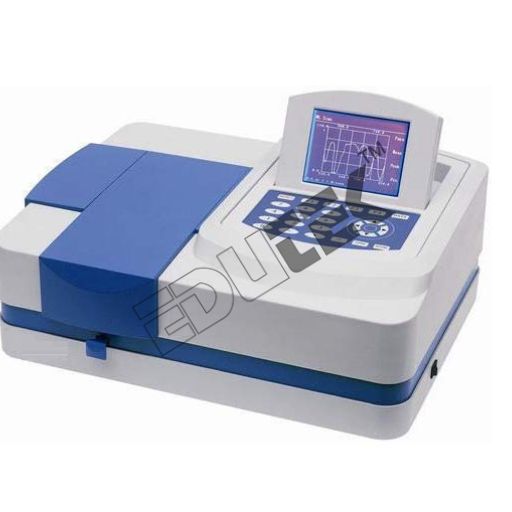

Uv Visi Spectrophotometer

Product Description

• For analysis of pesticides, operative with standalone and software both, having built in validation function.
• Photometric system/Optics Double beam.
• Radiation source Xenon Flash Lamp
• Spectral Band width 1.5nm
• Wavelength range 190 to 1100 nm
• Wavelength accuracy 0.5 nm
• Wavelength repeatability/ Reproducibility 0.1nm
• Photometric Range 4 Abs or better
• Photometric accuracy 0.005 Abs ( at 1.0Abs)
• Maximum Scan Rate 24,000 nm/ min
• Maximum Measurement Rate 80 Hz
• Lamp Life Time Typical Life time of 10 Years (Guaranteed 3 years)
• Detectors 2 Silicon Diode Detectors for Simultaneous sample beam and reference beam measurements

• Core i3 PC with Printer Laser Jet, UPS 2KVA
• Cells fused silica (10mm) =06No.
• Xenon Flash Lamo =01No
• Halogen Lamp =01No.
• Power Requirement 220 V AC 50-60 Hz

 DOUBLE BEAM UV- VISIBLE SPECTROPHOTOMETER (ET-29B)

• Optics Concave diffraction grating / Double Beam Principle
• Wavelength Range 190nm -1100 nm
• Spectral Bandwidth 1.5 nm
• Stray Light 0.05% (220nm NaI, 340nm NaNO2)
• Wavelength Accuracy 0.3nm
• Photometric Range Absorbance: A-3 to +3, T: 0% to 300%T
• Concentration: 0,000 to 9,999
• Wavelength Scan Speed 10, 100, 200, 400, 800, 1200, 2400,3600 nm/minute
• Baseline Stability 0.0003 Abs/hr (500nm, after 2 hours)
• Noise Level 0.0003 Abs (500nm)
• Light Source Tungsten-Halogen and Deuterium Lamps
• Light Source Switching Automatic switching selectable from 325nm to 370nm
• Detector Silicon Photodiode
• Display Back-lit LCD 190(W) x 138(H) mm
• Built in Silicon photodiode detector and built in deuterium and halogen lamp shaving automatic change over
