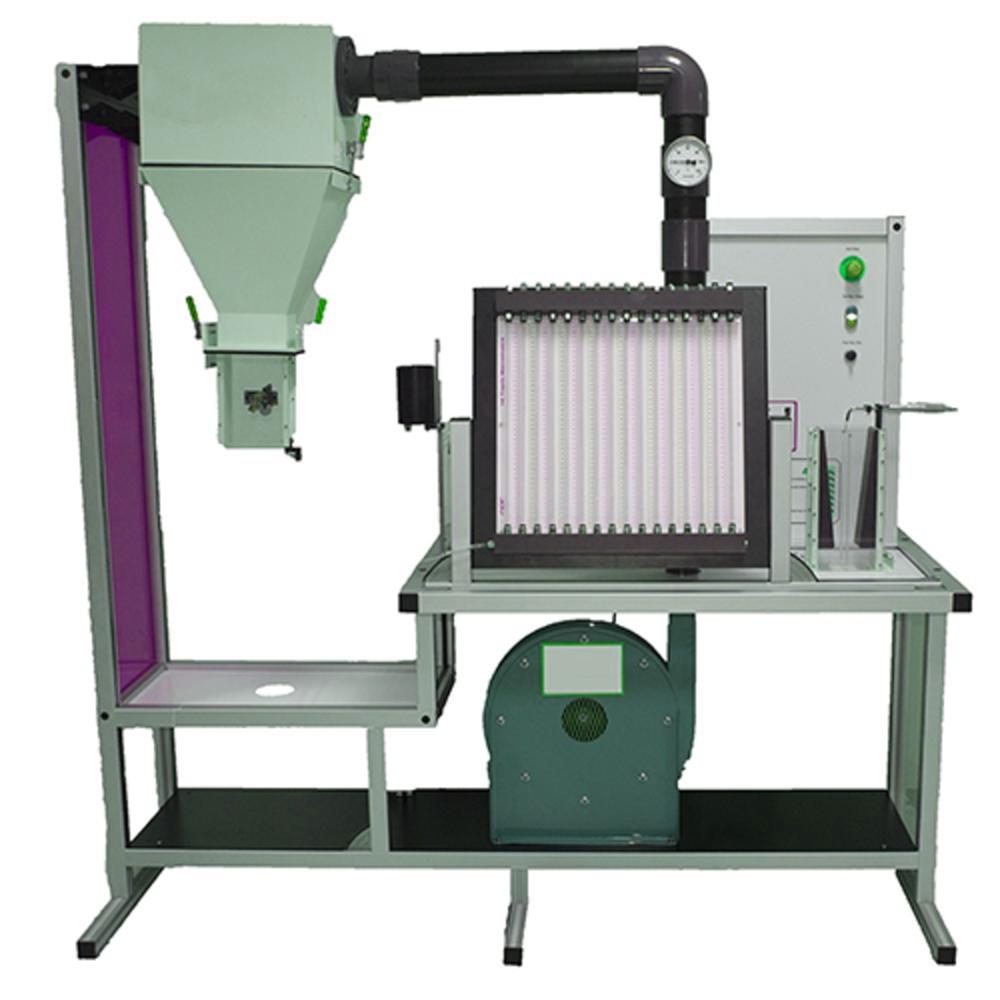

AERODYNAMICS TRAINER
Aerodynamics describes the behaviour of bodies during flow around or through bodies with a compressible fluid. The knowledge of experiments in aerodynamics has a significant influence on the development of means of transport (vehicles, ships, aircraft) and in architecture (skyscrapers, towers and bridges).
Along with its accessories typical experiments from the field of flow around, incident flow and flow through models, as well as further experiments in the field of steady incompressible flow.
The trainer includes a radial fan, which can be used to generate flow velocities up to 40m/s. The speed is infinitely adjustable by using a frequency converter. A stabilisation tank with flow straightener ensures a consistent, low-turbulence and reproducible flow in the measuring section. A carefully shaped nozzle provides a largely homogeneous velocity distribution of the air flow.
- Together with appropriate accessories: experiments from the field of flow around bodies
- Velocity measurement of flows with Pitot tube
- Boundary layer analysis on a flat plate with flow along the plate
- Drag of bodies
- Demonstration of the Coanda effect
- Visualisation of streamlines together with appropriate accessories: experiments from the field of steady incompressible flow
- Velocity measurement of flows with Pitot tube and Pitotstatic tube
- Free jets
- Flow in a pipe elbow
- Proof of Bernoulli's principle
Specification:
- Aerodynamics experiments in the fields of flow around, incident flow and flow through models, as well as further experiments in the field of steady incompressible flow.
- Vertical measuring section with flow straightener and nozzle
- Radial fan infinitely variable via frequency converter
- Thermometer for measuring air temperature
- Accessory securely attached to Aerodynamics Trainer with quick release fasteners
- 16 tube manometers for displaying pressures
- Accessories for the field of flow around bodies:
- Boundary Layers
- Drag Forces
- Coanda Effect
- Visualisation of Streamlines
Accessories for the field of steady incompressible flow:
- Bernoulli's principle
- Flow in a pipe elbow
- Free Jets
Technical Data:
- Together with appropriate accessories: experiments from the field of steady incompressible flow
- Velocity measurement of flows with Pitot tube and Pitotstatic tube
- Free jets
- Flow in a pipe elbow
- Proof of Bernoulli's principle
Specification:
- Aerodynamics experiments in the fields of flow around, incident flow and flow through models, as well as further experiments in the field of steady incompressible flow.
- Vertical measuring section with flow straightener and nozzle
- Radial fan infinitely variable via frequency converter
- Thermometer for measuring air temperature
- Accessory securely attached to Aerodynamics Trainer with quick release fasteners
- 16 tube manometers for displaying pressures
- Accessories for the field of flow around bodies:
- Boundary Layers
- Drag Forces
- Coanda Effect
- Visualisation of Streamlines
Accessories for the field of steady incompressible flow:
- Bernoulli's principle
- Flow in a pipe elbow
- Free Jets
Technical Data
- Radial fan
- Power consumption: 0,37 kW
- Max. volumetric flow rate: 15 m3/min - nozzle exit cross section:
- 50x100 mm
- Max. flow velocity at the nozzle exit: 40 m/s
Dimensions and Weight
- L x W x H: 980 x 450 x 1250 mm
- Weight: approx. 87 kg
