Bernoullis Theorem Demonstration

Product Description

Bernoullis Theorem Demonstration

Features :

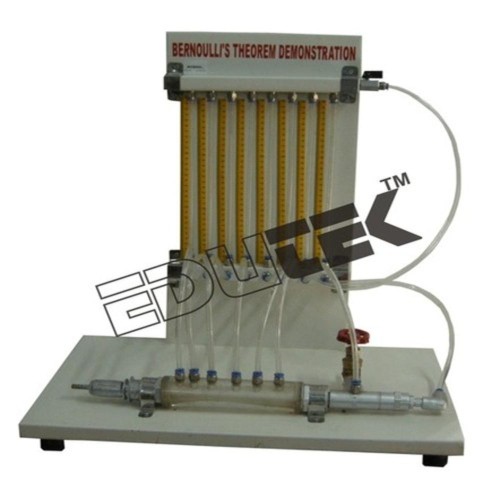

This equipment enables to study the Bernoullis theorem through the use of a classical venture tube Equipped with 6 static tapping points and a pilot tube for the measurement of dynamic pressure along the duct The tapping points and pilot tube are connected with a seven tubes differential pressure gauge The water flow rate is controlled by two valves placed at the inlet & outlet of the Venturi tube

Specifications :

• Stainless steel structure 8 tubes pressure gauge.
• range:  0 to  500 m.
• Diameter of venture tube : 20 mm.
• Venturi tube throat diameter : 10 mm.
• Up stream taper : 14º.
• Downstream taper : 21º.
• Dimension : 650 x 400 x 850 mm.


Training Program :

Demonstration of Bernoullis theorem and of its limitations Direct measurement of the static and dynamic pressure distribution along a Venturi tube Determining the discharge coefficient of the Venturi tube.
