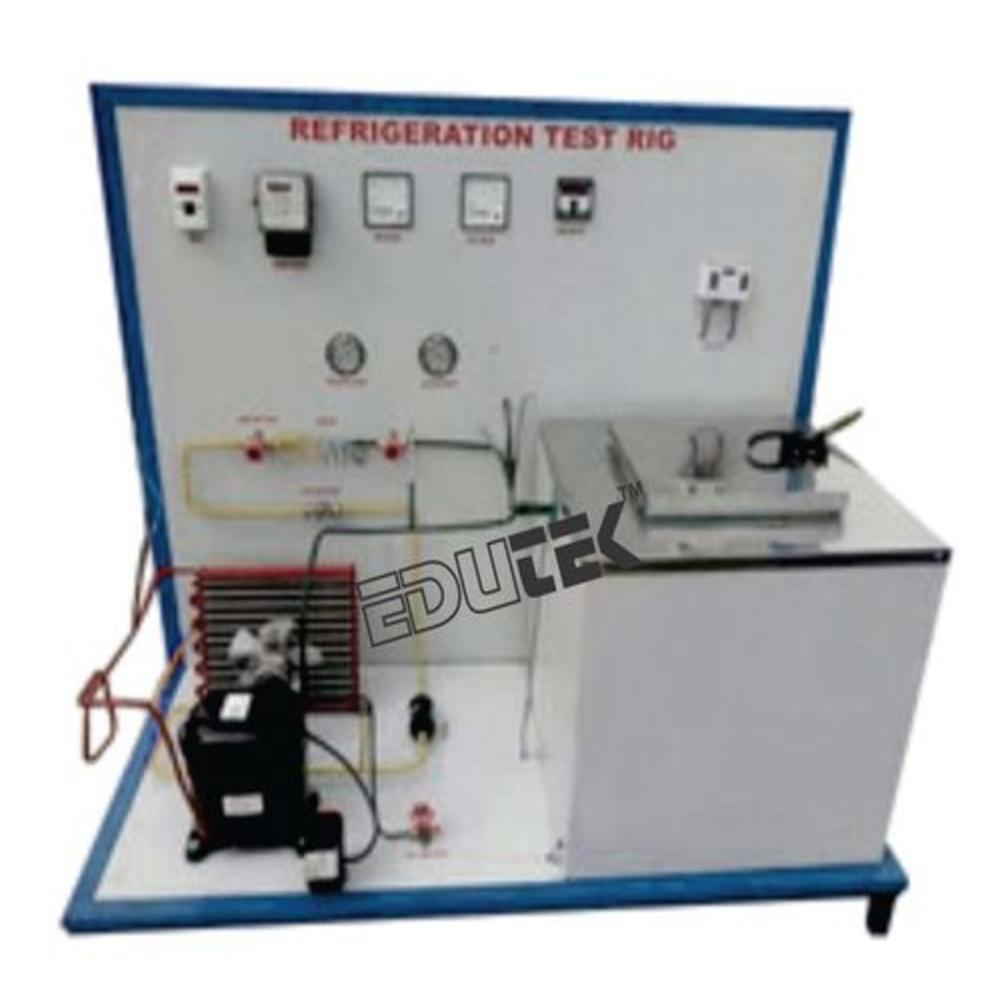

REFRIGERATOR MODEL
HSI training system for refrigeration and air conditioning technology. In combination with the base unit the operational model of a domestic refrigerator is created. The model is plugged onto the base unit, secured using fasteners and connected with refrigerant hoses to become a complete refrigeration circuit. consists of a refrigeration chamber with a heater as cooling load, evaporator, fan and various expansion elements. The fan supports the achievement of an even temperature distribution in the chamber. A cooling load can additionally be simulated with the heater. Solenoid valves enable the operation of the system with capillary tube or with expansion valve. All components are clearly arranged on a panel.
The operation of individual system components, here the temperature control, fan, heater, compressor and solenoid valves, takes place via the software. The software offers the option to simulate faults.
Temperatures and pressures in the system are recorded by sensors and displayed dynamically in the software. The effect of parameter changes can be tracked online in the log p-h diagram.
Fundamentals and individual components are represented in the educational software for. Performance assessments check the learning progress. With the aid of the authoring system further exercises and performance assessments can be created.
The unit shall perform the following experiments and investigations:
Learning Objectives / Experiments
  • understand and get familiar with the design and
  • operation of a simple refrigeration system
  • familiarisation with the principle of operation of an
  • evaporator
  • different expansion elements
  • operation with capillary tube
  • operation with expansion valve
  • operating behaviour under load
  • refrigeration cycle in the log p-h diagram
  • fault simulation
Specification
  • Model of a refrigerator to plug onto the base unit HSI Training System
  • Training system with HSI technology
  • Refrigeration chamber with evaporator, fan and cooling load
  • Chamber with transparent front
  • Electric heater to generate the cooling load
  • Expansion elements selectable via solenoid valves: expansion valve or capillary tube
  • Sensors to record temperature and pressure
  • Operation of solenoid valves, fan, heater and fault simulation via software
  • Software: educational software, data acquisition, system operation
  • Software for data acquisition via USB under Windows Vista or Windows 7
Technical Data
  • Refrigeration chamber, LxWxH: 270x270x220mm
  • Electric PTC heater as cooling load: 210W
  • Capillary tube: length 2m
Measuring ranges
  • Temperature: 3x -50...50°C
  • Pressure: -1...9bar
Dimensions and Weight
  • LxWxH: 850x380x550mm
  • Weight: approx. 30kg
